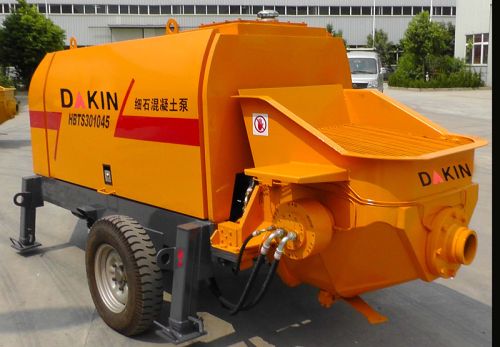

Concrete pump

We are offering concrete pump. model hbts30-10-45 length(l) 4350mm width(w) 1650mm height(h) 1750mm hopper capacity 0.6m³ feeding height 1100mm weight 3000kg theoretical delivery pressure 10mpa theoretical concrete output 30m³/h hydraulic system open engine type motor power 45kw rotation speed 1480r/min distribution valve s pipe valve hydraulic cylinder diameter 100mm concrete cylinder diameter 160mm high/low pressure switch available hydraulic oil tank volume 120l max. Vertical reach 120m max. Horizontal reach 360m hydraulic pump handok hydraulic
