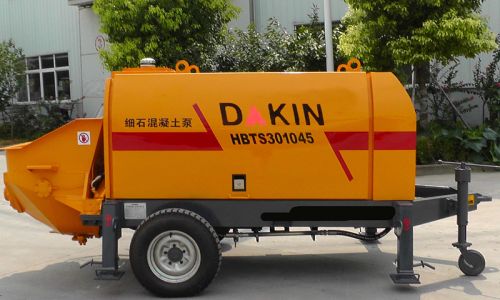

Concrete pump, Material : Mild Steel

We are offering concrete pump.
model hbts30-10-56r
length(l) 4350mm
width(w) 1650mm
height(h) 1750mm
hopper capacity 0.6m³
feeding height 1100mm
weight 3200kg
theoretical delivery pressure 10mpa
theoretical concrete output 30m³/h
hydraulic system open
engine lovol/jinma
power 56kw
rotation speed 1800r/min
distribution valve s pipe valve
max. Concrete 50mm
aggregate diameter 40mm
concrete slump 10-23
hydraulic oil tank volume 460l
max. Vertical reach 50m
max. Horizontal reach 150m
hydraulic pump handok
hydraulic elements imported.
