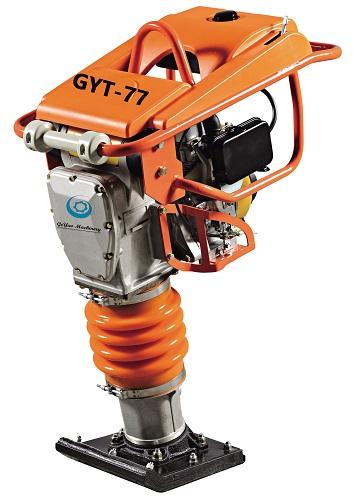

Concrete Road Tamping Machine, Construction Gasoline Tamping Rammer

Features and advantages:
1.reliable four stoke engine delivers low emission and noise
2.additional built-in air filtration system plus the original air cleaners in the engine provides cleaner air to engine for longer life and improved durability.
3.ingenious throttle lever for smooth operation
4.heavy shock mount system to reduce hand-arm vibration and improve operator comfort
5.plastic oil tank offers longer life and rust-free
6.protective top frame cover eliminates possible damage to the engine
7.german made polyurethane ribbed bellow for long life
8.an integrated fuel valve provides for easy starting.
9.rammer shoe made of steel plate with wooden insert offers economical usage.
Specification
model gyt-72h gyt-77r
engine type honda gx160 robin eh12-2d
power kw(hp) 4.0(5.5) 3.0(4.0)
weight kg(lbs) 72(158) 77(169)
impact force kn 15 14
jumping stroke cm(in) 5-8(1.9-3) 4-8(1.5-3)
fuel tank(l) 2.8 2.8
plate size cm（in） 35*28.5(13*11) 33*28.5(12.6*11)
application scope
this tamping rammer is mainly used in the road construction and maintenance, it's intended to be used in confined areas, next to structures such as foundations, walls and curbs as well as compacting the municipal, airports, harbors and stations roadbed. Paving the soil backfilled to underground water pipe and electrical & gas pipe. Our tamping rammer is equipped with four-stroke cycle engine guarantees power, therefore, it is facilitate to operate and the quality is stable. The integrated transmission system composed of crankshaft and link lever enhances the stability, effective wallop can be guaranteed. The corrugated pipe was imported with good quality. The front-mounted air filter can make the ram plate work in its maximum capacity condition.
