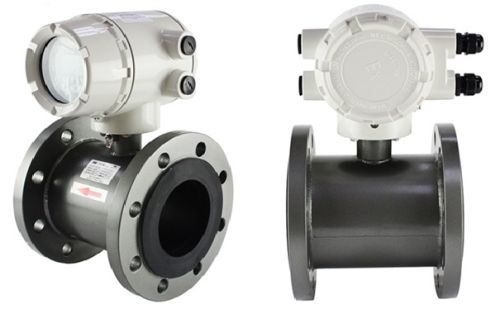

CONDUCTIVE ACID FLOW METER

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Application : Conductivity liquid, such as corrosive liquid; mud ,waste water and slurry, water etc. Sensor Output: Pulse;4~20mA;HART;RS485;MODBUS;GPRS Lining and Body Matereial PTFE,....

Company Information

Member Since 20 Years
Nature of Business Retailer
Year of Establishment 2000

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Application :

Conductivity liquid, such as corrosive liquid; mud ,waste water and slurry, water etc.

Sensor Output:

Pulse;4~20mA;HART;RS485;MODBUS;GPRS

Lining and Body Matereial

PTFE, Rubber Lining and cast

steel; stainless steel body material

Flow Meter Installation

1. Installation location

Avoid the magnetic objects and equipment with strong electromagnetic field;
should install the flow meter at ventilated location;
Avoid the location wherer ambient temperature above 50℃ and relative humidity above 90%;
The water flow meter should be installed at somewhere spacious;
The 4-20Ma Sensor Electromagnetic Water Flow Meter Smart should be installed behind pump and the value should install at downstream.

Flow Sensor Installation

Must to ensure the pipeline is filled and without bubbles to keep the high accuracy;
The flow direction should keep with sign on the body of flow meter;
Ensure the double electrodes keep Horizontal;
If the medium is mixed by liquid and solid,Pls install it at vertical to extend the working life of lining;
If the environment with shocked pls install the bracket at both front and behind;
If the medium is pollution liquid, should install the flow meter at bypass pipe and don't interrupted when you on service;

Model NO	ILUX –EM -01 CONDUCTIVE ACID FLOW METER
Medium	Conductive Acid , waste water; Mud and various kinds of conductivity liquid
Diameter	DN10~DN2000mm
Accuracy	+/-0.5%
Temperature	<80℃(rubber); <180℃(PTFE)
Pressure	10 kg/cm² Max (Higher on Request)
Flow speed	0.3~10m/s
Requirement of pipeline	Upstream ≥5DN;Downstream10DN
Electrode	Stainless steel 316L(standard); Titanium; Tantalum ; Hast alloy
Lining	PTFE; Rubber
Connection	Flange; thread; clamp on
Body material	Cast steel ;stainless steel
Power supply	220V;24V;Battery
Output	Pulse;4~20mA;HART;RS485;MODBUS;GPRS
Communication	HART;RS485;MODBUS
Explosion proof	Customized
Protection	IP65 or IP67
Environment	Environment:-20~60℃

ITEM	ELECTRODE SPECIFICATION
Material	The Medium
SS316L	Water; Waste water; Corrosive water and Mud, etc;
Hastelloy B	Non-oxidizing acids at concentrations less than 10%; NAOH Concentrations less than 50%
Hastelloy C	Mixed Acid and Oxidizing salts
Titanium	Salt and weak acid ;Not application: hydrochloric acid, nitric acid and other reducing acids
Tantalum	Hydrochloric acid(<40%); Sulphuric acid and Other oxidizing acids
Platinum	Almost all acid-base salt solution But not application for aqua regia, except ammonium salt
Tungsten carbide	Pulp ; sewage ;slurry

FLOW METER LINNING SPECIFICATION

Lining	Name	Symbol	Performance	Temp	Medium
Rubber	Neoprene	CR	Normal wear resistance acid salt	<80c	Water
Rubber	Polyurethane	PU	Good wear resistance , bad corrosive resistance	<80c	Pulp
Fluoroplastic	Teflon	PTFE	Acid Salt with stable Chemical properties	<140c	Acid Salt
Fluoroplastic	Polyvinyl Fluoride	FEP	Chemical properties same	<180c	Acid Salt
