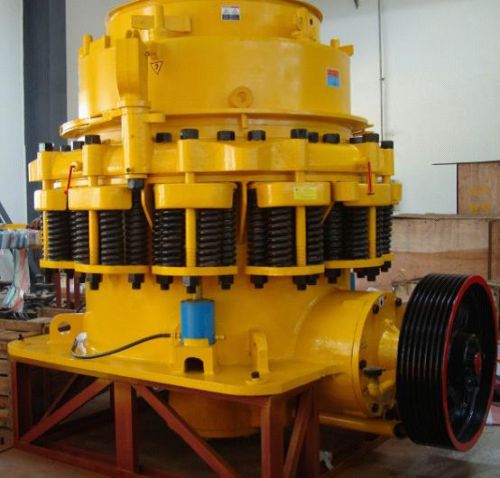

Cone Crusher, Power : 75 (kw)

We are offering cs series cone crusher.
1. High-performance
2. Good products size composition
3. Good stability
4. Convenient cleaning-up
1. Describtion of cs series cone crusher
according to customer's requirement, our company designs high-performance crusher, cs series high-efficiency spring cone crusher. This crusher concentrates on the speciality of high-frequency, optimization of cavity-type, reasonable stroke and bases on the advanced technology introduced abroad, follows the conception of laminated crushing principle, more crushing and less grinding.
2. Features of cs series cone crusher
according to customer's requirement, our company designs high-performance crusher, cs series high-efficiency spring cone crusher.
this crusher concentrates on the speciality of high-frequency, optimization of cavity-type, reasonable stroke and bases on the advanced technology introduced abroad, follows the conception of laminated crushing principle, more crushing and less grinding.
1. High-performance
combining optimal designing of chamber type with applying reasonable speed and stroke, to make this kind of machine does more work with the same dynamic cone diameter. Therefo, this machine is of high-performance and manufactring capacity compared with other cone crusher of the same type. Use lminated crushing principle, to make more cubic shape materials and less needle-like materials.
2. Good products size composition the crusher applys for laminated crushing principle to make cubic shapes of final products stand for larger proportion. Acicular and flake shape products decrease and size fraction much more well-proportioned.
3. Good stability if there is metal or other non-broken material come to the chamber, metal going through protection device will release it and then reset automaticly. The protection device has fixed discharge opening returning point and the original discharge opening can returing back immediately after the metal goes through the crushing chamber.
4. Convenient cleaning-up if the crusher stops under loading condition, hydralic cleaning system can clean up the crushing chamber quickly so that decrease the downtime.
5. High reliability. Adopting main shaft with big diameter,heavy main frame and separate automatic control system of thin oil lubrication system, so that it guarantees robustness and reliable operation of the crusher.
6. Easy maintenance and operation all parts can be disassembled from top and the upper side, so that fixed cone and dynamic cone can be disassembled easily. Under high shock and vibration environment, bronze bearing can keep excellent bearing capacity and it is much more economic and easy for maintenance.
7. Low production costs due for big capacity, high reliability and easy maintenance, the production costs has been recuded greatly.
8. Widespread use the speciality of cs series high-efficiency spring cone crusher is maximizing the performance to apply to all kinds of crushing process: from special coarse crushing to fine crushing; from fixed crushing plant to mobile crushing plant. Cs series high-efficiency spring cone crusher has different types of crushing chamber for choosing according to crushing process.
9. Separate lubrication
structure of cs serises cone crusher
it mainly consists of frame, concaves assembly, mantle assembly, spring, bowl support, and transmission.
auxilliary parts includes electrical system, lubrication system, and hydraulic cleaing system.
concaves assembly is composed of adjustment sleeve, concave, while mantle assembly is composed of main shaft, mantle head, mantle. Transmission part is composed of pulley, shaft, pionion and gear.
1. Frame
2. Pulley
3. Shaft
4. Pionion
5. Gear
6. Main shaft
7. Spring
8. Head
9. Mantle
10. Concave
11. Adjustment sleeve
12. Distributor plate
13. Feed inlet
14. Adjustment ring
15. Support
16. Support for bowl
17. Eccentric bushing
working principle of cs series cone crusher
motor drives eccentric bushing to rotate via v-belts, pulley, shaft, pionion, gear. Mantle rotates with eccentric bushing, so mantle goes near and far from the concave, and crush stone into
main technical data of cs series cone crusher
standard
model
dia. Mm (inch)
cavity
feed opening
outlet setting (mm)
shaft speed (r/min)
power (kw)
capacity (t/h)
weight (t)
dimension (mm)
closing side (mm)
open side (mm)
csb75
900 (3')
fine
83
102
9-22
580
75
45-91
15
2821×1880×2164
coarse
159
175
13-38
59-163
csb110
1200 (4')
fine
127
131
9-31
485
110
63-188
20
2821×1974×2651
medium
156
156
13-38
100-200
coarse
178
191
19-51
141-308
csb160
1295 (4 1/4')
fine
109
137
13-31
485
160
109-181
27
2800×2342×2668
medium
188
210
16-31
132-253
coarse
216
241
19-51
172-349
csb240
1650 (5 1/2')
fine
188
209
16-38
485
240
181-327
55
3911×2870×3771
medium
213
241
22-51
258-417
coarse
241
268
25-64
299-635
csb315
2134 (7')
fine
253
278
19-38
435
315
381-726
110
4613×3251×4732
medium
303
334
25-51
608-998
coarse
334
369
31-64
789-1270
short head
model
dia. Mm (inch)
cavity
feed opening
outlet setting (mm)
shaft speed (r/min)
power (kw)
capacity (t/hour)
weight (t)
dimension (mm)
closing side (mm)
open side (mm)
csd75
914 (3')
fine
13
41
3-13
580
75
27-90
15
2821×1880×2410
coarse
33
60
3-16
27-100
csd110
1218 (4')
fine
29
57
5-16
485
110
50-132
20
2560×1942×2928
medium
44
73
10-16
90-145
coarse
56
89
13-19
141-181
csd160
1295 (4 1/4')
fine
29
64
3-16
485
160
36-163
27
2800×2342×2668
medium
54
89
6-16
82-163
coarse
70
105
10-25
109-227
csd240
1676 (5 1/2')
fine
35
70
5-13
485
240
90-209
55
3917×2870×3771
medium
54
89
6-19
136-281
coarse
98
133
10-25
190-336
csd315
2134 (7')
fine
51
105
5-16
435
315
190-408
110
4130×3251×4454
medium
95
133
10-19
354-508
coarse
127
178
13-25
454-599
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
