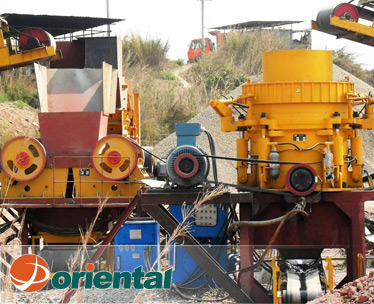

Cone Crusher, Driven Type : Electric

We are offering cone crusher. Cone crusher is widely used for secondary and fine crushing in the fields of mining, building materials, metallurgies and so on. The hp cone crusher can crush materials with middle and high hardness such as ironstone, copper ore, granite, basalt, cobblestone, marble, limestone and so on. The hp cone crusher is widely used in highly automatic crushing line which has strict requirements for the fineness of the end products and crushing ratio.
features of oriental hp cone crusher
● unique hydraulic protecting system, including protecting oilcan, locking oilcan and hydraulic driving oilcan, which can not only protect the machine, but also deal with operational troubles without disassembling the whole machine.
● easy to operate, reliable performance and adjustable in terms of size of the end products.
● the crushing chamber is specially designed according to particles-layer- pressure principle. The special chamber and the suitable rotating speed improve the crushing ratio and capacity, and also the percentage of cubic products.
● if something abnormal happens, for instance, the iron is fed into the crushing chamber or there is a jam in the chamber, the up-cover of the machines will be lift up and the materials will be discharged automatically, thus eliminating the chance of machine stoppage to discharge the material by workers. Besides, it’s easy to maintain, and the cost is much lower than spring cone crusher.
● unique hydraulic device and diluted oil lubricating system ensures the reliable performance of the equipment. The labyrinth-like sealing obviates the mixture of water and oil, which is hard to avoid in the traditional spring cone crusher.
● the mantle and bowl liner are made of high-manganese steel. The special design of crushing chamber and particles-layer- pressure protection device reduce the abrasion, extending the service life of spare parts by 30%-80%.
technical data of oriental hp cone crusher
model cavity size (coarse/fine) minimum discharging size(mm) max feeding size(mm) capacity(t/h) weight(t) power(kw)
hp-160 c 13 150 120-240 13 160
f 6 76 55-180
hp-220 c 13 225 150-430 18 220
f 6 86 90-260
hp-315 c 13 290 190-610 26 315
f 6 100 108-320
hp-400 c 16 320 230-700 33 400
f 8 110 145-430.
