Cone Crusher large, Packaging Type : oem, Weight : heavy

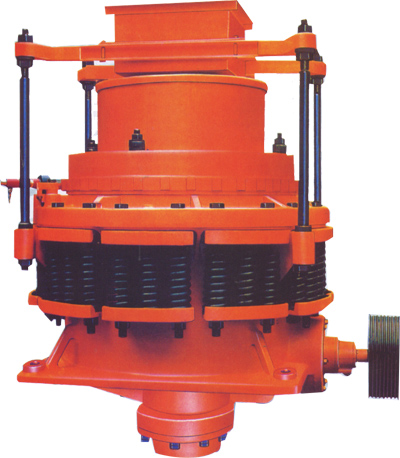

cone crusher
1. Adopting imported bowl-shaped bear of high precision, concentrating thin oil lubrication system and lubrication grease sealed manner to avoid the phenomenon of water and oil mixture.
2. Adjustable discharge size with spring safety device, protecting the equipment from the non-crushing material.
3. Suitable for all kinds of mining materials under 350-mpa pressure like iron ore,
non-ferrous metal, basalt, granite, limestone, sandstone and cobble.
Technical parameters:
Model
Diameter
(mm)
Max feed size
(mm) Adjustment range of discharge
(mm) Production
(t/h)
Power
(KW)
Rotate speed
(r/min)
Weight
(t)
Overall size
(L*W*H)
(mm)
PYB600 600 75 12-25 40 30 356 5 2234*1370*1675
PYD600 600 40 2-13 12-23 30 356 5.5 2234*1370*1675
PYB900 900 115 15-50 50-90 55 333 11.2 2692*1640*2350
PYZ900 900 60 5-20 20-65 55 333 11.2 2692*1640*2350
PYD900 900 50 3-13 15-50 55 333 11.3 2692*1640*2350
PYB1200 1200 145 20-50 110-168 110 300 24.7 2790*1878*2844
PYZ1200 1200 100 8-25 42-135 110 300 25 2790*1878*2844
PYD1200 1200 50 3-15 18-105 110 300 25.3 2790*1878*2844
PYB1750 1750 215 25-50 280-480 160 245 25.3 3910*2894*3809
PYZ1750 1750 185 10-30 115-320 160 245 25.3 3910*2894*3809
PYD1750 1750 85 5-13 575-230 160 245 50.2 3910*2894*3809
PYB2200 2200 300 30-60 590-1000 280 220 80 4622*3302*4470
PYZ2200 2200 230 10-30 200-580 280 220 80 4622*3302*4470
PYD2200 2200 100 5-15 120-340 280 220 81.4 4622*3302*4470
