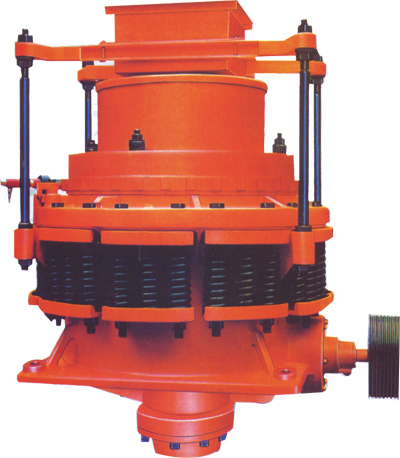

Cone Crusher, Weight : 10000 Kg

Cone crusher
Application:
Cone Crusher is used in fine crushing of all kinds of ores ,such as iron ore,
Non-ferrous metal ,basalt, granite, limestone, sand rock and grail under 350Mpa crushing pressure. It is widely used in ore, cement, sand industries etc .
Working principles:
In the crushing task ,the motor spins through the belt or clutch .That makes the transmission axis and cone parts swings around a fixed point under the force of eccentric set .Because of that, the crusher wall is closed or far away from the rolling motor wall surface ever and again .Then the ores in the crushing cavity is impacted ,squeezed and bent continuously to realize the crushing ores .
Characteristics :
a. Reasonable structure design ,high production .Adopting imported bowl-shaped bear of high precision and concentrating thin oil lubrication system. By starting the hydraulic plant jar ,the discharging size can be adjustable .When the non-crushing materials enter into the crushing cavity ,the spring protector can protect the equipment .
b. Adopting lubrication grease sealed manner to avoid the phenomenon of water and oil mixture. The spring can make the sealing element closed ,continuously having sealing function. And it should be changed when worn down to 1/5 to 1/4 of the originate thickness.
Technical Parameters
Model Diameter (mm) Max Feed Size
(mm) Adjusted range of discharge
(mm) Production
(t/h) Power
(KW) Rotate Speed (r/min) Weight
(t) Overall size
(mm)
PYB600 600 75 12-25 40 30 356 5 2234*1370*1675
PYD600 600 40 2-13 12-23 30 356 5.5 2234*1370*1675
PYB900 900 115 15-50 50-90 55 333 11.2 2692*1640*2350
PYZ900 900 60 5-20 20-65 55 333 11.2 2692*1640*2350
PYD900 900 50 3-13 15-50 55 333 11.3 2692*1640*2350
PYB1200 1200 145 20-50 110-168 110 300 24.7 2790*1878*2844
PYZ1200 1200 100 8-25 42-135 110 300 25 2790*1878*2844
PYD1200 1200 50 3-15 18-105 110 300 25.3 2790*1878*2844
PYB1750 1750 215 25-50 280-480 160 245 25.3 3910*2894*3809
PYZ1750 1750 185 10-30 115-320 160 245 25.3 3910*2894*3809
PYD1750 1750 85 5-13 575-230 160 245 50.2 3910*2894*3809
PYB2200 2200 300 30-60 590-1000 280 220 80 4622*3302*4470
PYZ2200 2200 230 10-30 200-580 280 220 80 4622*3302*4470
PYD2200 2200 100 5-15 120-340 280 220 81.4 4622*3302*4470
