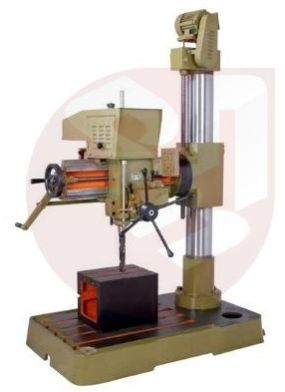

| “SHREE” Brand Cone Pulley Radial Drill Auto Feed | |
| Specification | CPRD40A |
| Capacity | |
| Drilling capacity | 40 mm |
| Spindle | |
| Spindle Travel | 215 mm |
| Spindle Tapper | MT4 |
| No. of Spindle Speed | 8 |
| Spindle Speed Range (RPM) | 70 to 2000 |
| Auto Feed Speed | 0.04 / 0.08 |
| Working Range | |
| Pillar Diameter | 170 mm |
| Pillar Length | 1490 mm |
| Distance from spindle centre to pillar surface (max) | 790 mm |
| Spindle nose to table distance | 705 mm |
| Distance from spindle nose to base distance | 995 mm |
| Working Surface of Box-Table | 290 x 375 mm |
| Height of Working Table | 290 mm |
| Base size (Machined Area) | 735 x 1240 mm |
| Overall Base Size | 745 x 1260 mm |
| Overall height with pulley guard | 1960 mm |
| Motor Belt (V-Belt) | B – 45 & A – 24 |
| Electricals | |
| Drilling Head Motor (HP / RPM) | 1.5 / 1440 |
| Elevator Motor (HP / RPM) | 0.5 / 1440 |
| Machine Dimension & Weight (Approx.) | |
| Length x Width | 1300 x 940 mm |
| Height | 2100 mm |
| Weight | 800 kg |
