Contact SupplierConference system with voting

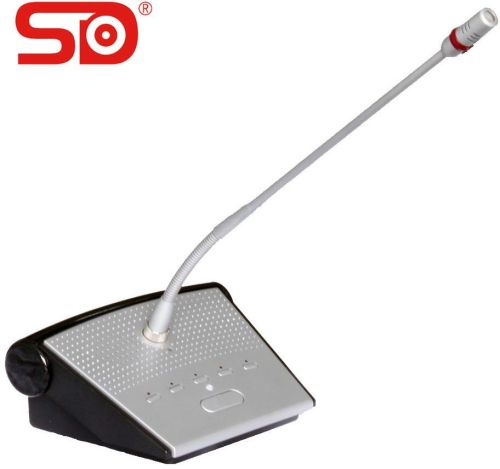

sm616v digital conference system offers a multifunctional tabletop conferencing solution featuring microphone discussion, interactive voting, attendance registration, video tracking, and software control.
main features:
-highly resistant to mobile phone interference
-pluggable gooseneck microphone stem
-long microphone pick-up range
-5 buttons for voting and election
-red ring luminant to indicate active mic
two kinds of voting mode:
a. Parliamentary mode: 5 keys on the voter, the three keys in the middle "yes"" no"" abstain "when the beginning of voting, indicator lights turn on, after pressing the button corresponding to the indicator lights is blink, that is meaning have been carried out effectively vote, support modify the mean before the voting, and last key press valid
b. Appraisal mode: 5 keys voting:''- -''(extremely unsatisfied), ''-''( unsatisfied),''0''( basically satisfied),''+''( satisfied),''++"( perfectly satisfied),and last key press valid
the conference unit allows the delegate to speak, request to speak and listen to speech, register attendance and cast a vote. Each unit comes with headphone jack and volume control for the delegate to listen to the floor speaker, and adjust volume level for comfortable listening. multiple chairman and vice-chairman units can be used in one system, and can be active at any time regardless of preset delegate mic limit. Delegate unit can be configured as vice-chairman unit via software. Chairman unit has the additional priority button to override all delegate units to control
technical specifications:
mounting type: fixed or portable tabletop mounting
mic pick-up range: up to 60 cm
frequency response 80hz-16khz
sn ratio: >40db1uba
sensibility -46dbâ±4db
power input 24vdc
microphone stem length 410 mm.
