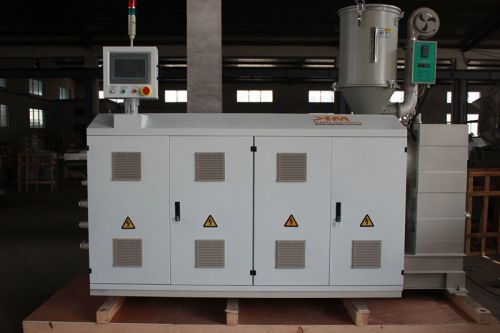

Conical Twin Screw Extruder

Lsz series twin screw conical extruders are high effective extrusion equipments, they have small shear rate, difficulty to break down the material, uniform plastic mixing, high capacity, high quality, good self-cleaning, big application, long life and other advantages.
1). Direct molding of pvc powder material, good effective.
2). Adopted automatic termocontrol, vacuum exhaust, screw core cooling. Air cooling or oil cooling for barrel.
3). Installed with quantitative feeding device
main technical data:
itemmodel lsz4590 lsz51105 lsz55110 lsz65120 lsz65132 lsz80156 lsz92188
screw diameter (mm) 4590 51105 55110 65120 65132 80156 92188
quantity of screws 2 2 2 2 2 2 2
capacity
(kgh) 90 120 140 280 300 450 800
screw rotating speed(rmin) 46 37 36 35 35 37 33
effective length (mm) 950 1060 1200 1320 1440 2000 2500
heating power (kw) 11 12 18 20 20 36 70
main motor power(kw) 15 18.5 22 30 37 55 90.
