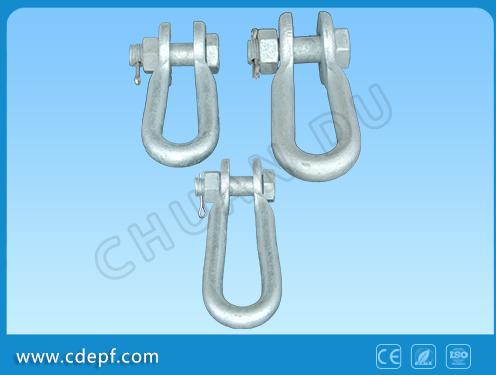

Connecting Fitting Rigging Shackle

Connecting fitting rigging shackle the link fitting connectors adjustable rigging shackle is mainly used to transform angles and extend the tension insulators,the use is very wide,it not only can be used alone, also can use two shackles meanwhile. Forged d shackles, also known as a gyve, is a u-shaped piece of metal secured with a clevis pin or bolt across the opening, or a hinged metal loop secured with a quick-release locking pin mechanism.  catalog no. Dimensions (mm) rated failure load (kn) weight (kg)   c m d h r r ul-7 20 16 16 120 15 15 70 0.7 ul-10 22 18 18 140 17 17 100 1 ul-12 24 22 20 140 18 18 120 1.5 ul-16 26 24 22 140 19 19 160 1.7 ul-20 30 27 24 160 22 22 200 2.9 ul-1615 26 24 22 150 19 19 160 1.6 ul-16s 28 24 20 140 16 16 160 1.1 ul-21s 28 24 20 160 16 16 210 1.7 ul-32s 32 30 28 160 20 20 320 3.4 our factory jiangsu chuandu electrical technology co.,ltd is specialized in electric power fitting for 18 years.the company was founded in 1999 with the registered capital reaching rmb 100 million, covers an area of 41000 ㎡.the company is a technology-based manufacturing-type enterprise which mainly produces and sells electrical fittings of various specifications and types for high and low voltage transmission and power stations.
