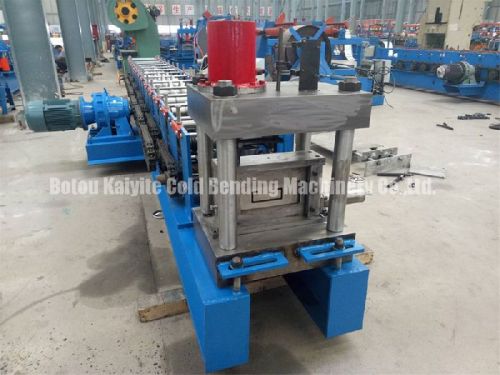

Construction C Purlin Cold Roll Forming Machine

Construction C Purlin Cold Roll Forming Machine When we using the construction c purlin cold roll forming machine, at first set orders and run auto by touch screen  , then put material on entering entrance , then clamp material tightly by rubber roller , the profile are made graudally through every roller , the machine will automatic cut to length as your orders . Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand A. full automatic B . lower cost  C. high efficiency D. reliable working  E. low energy consumption You can check our machine over all. Not only beautiful in the surface but also good quality. Technical parameters: Material speciafication : colored steel sheet , galvanized steel sheet Width of raw material : 175-465mm Thickness of coil sheet :1 - 2 mm Forming speed : 10-15 meter min Diameter of shaft : 90 mm Hydraulic station power : 4 kw Main motor power :4 kw Material of cutting : Gr12 Voltage : at buyers requirement Controlling system : PLC In order to help you know our machine much better. The following is the detailed pictures of the machine. Hydraulic cutting system : fully automatic .  Material of blades: Cr12, quenching treatment. Forming rollers Specification: 45# steel, CNC Lathes, heat treated 45# steel, roller surfaces polishing, hard plating. The polished surface and the heat treatment towards the molds also can keep the molding.
