Construction Expanded Metal Rib Lath

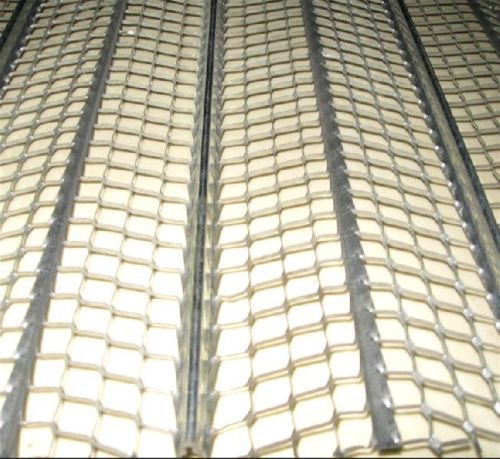

0.4mm expanded metal rib lath for construction  expanded metal rib lath is expanded metal-lath stiffened with longitudinal ribs. The furring design of the mesh provides efficient background plaster for construction of partition, suspended ceilings and refurbishment works. The advantage of ribbed-lath over metal-lathing is that support centers can be increased or widened. Rib lath is expanded metal lath stiffened by longitudinal steel ribs, formed in the same sheet of metal.  the mesh areas of the lath are expanded by cutting and stretching in the sheet of metal, the ribs being simultaneously roll-formed.  the furring design of the mesh provides an execellent background plaster for construction of partitions, suspended ceilings and refurbishment works.  the advantages of rib lath over metal lath is that the support centres can be increased or widened. new design rib lath the thickness of rib lath common goes 0.3mm, 0.4mm, 0.45mm, 0.5mm.the rib height is 18"(3.2mm), 38"(9.6mm), 4mm, 10mm, or 34"( this kind of rib lath is called metal rib).  model thickness (mm) weight (kg) width (mm) length (mm) rib height (mm) rib distance(mm) 021 0.21 1.70 450 2200 14-20 90 023 0.23 1.90 450 2200 14-20 90 030 0.30 2.48 450 2200 14-20 90 035 0.35 2.90 450 2200 14-20 90 040 0.40 3.30 450 2200 14-20 90 045 0.45 3.70 450 2200 14-20 90 050 0.50 4.10 450 2200 14-20 90     specifications: sheet size: 27'' x 96'' 27'' x 84''     &nb.
