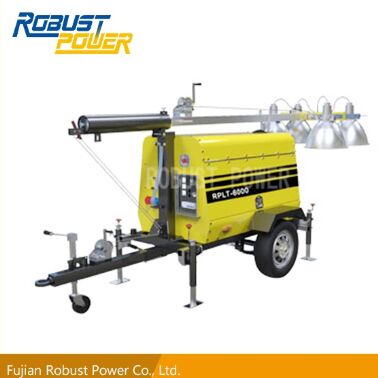

Construction Machinery Mobile Light Tower, Brand Name : robust power

Diesel generator set powered light tower(rplt-6000k) use kubota water-cooled diesel engine matching with alternator.
Model number rplt-6000k
mast
maximum extension of mast 9m(hydraulic)
elevation hydraulic
raisinglowing mast button(hydraulic)
stages 6
turning angle 360 degree
lamp
total power of lamps 4x1000w
type of lamp metal halide
light capacity 6x110000 lumen
voltage 230volt
frequency 50hz
lifetime of lamo 5000hours
working temperature � 85
connection protection index ip54
tilted angle of light bar 130 degrees electrical waving
characteristics of the generator
model rd-10k
generator set power 8kva8kw
engine model japan kubota d1105-bg
engine speed 50hz 3000rpmâ  â  â  â  60hz 3600rpm
intake system natural aspiration
type vertical 4 cycle liquid cooled diesel
alternator model megaton mwl 18afs1
no. Of cylinders 3
continuuous power for 50hz(1500rpm) 8.4kw11.3hp
type burushless, self-excitation
voltage regulation automatic
frequency 50hz
fuel tank capacity 100l
continue running time 50hours
fuel consumption at 100% load 2.0lhours
trailer type
road trailer with hitch ball
dimension(lxwxhmm)
storage 2650mm*1400mm*3250mm
working 2650mm*2400mm*9390mm
