Q195 Constructional Reinforcement Welded Mesh Panels

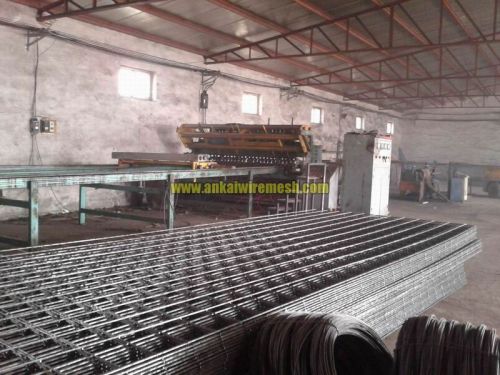

Constructional reinforcement mesh panels made of crimped ribbed steel round wire rods or bars. The welding for steel bar welded mesh is done with spot welders or arc welders. The ribbed steel bars running parallel to the width of the roll are placed on top of the steel bar running parallel to the length. Then, the wire rod / steel bars are welded where they intersect to form a square or rectangular mesh structures.

Welded steel bar mesh panels have three types: black steel bar welded wire mesh, galvanized steel bar welded wire and hot dipped galvanized steel bar welded wire mesh.

General Information:
Wire Rod / Bar Diameter: From 5mm to 16mm.
Welded bar panels opening: 75mm to 300mm.
Panel length: 100cm to 1400cm.
Panel width: 100cm to 300cm.

Applications: Welded steel bar wire mesh panels are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.

Features: Steel bar welded panels offer solid construction, Easy handling and operating.

Packing: PVC Shrink, Moister-proof paper, Carton, pallet, Wooden Box , Special packing can be arranged upon request.

Common Technical Data of Steel Bar Welded Mesh:
Horizontal Spacing of Welded Steel Bars: 100, 200, 300, 400
Vertical Spacing: 50-600
Wire Rod/Bar Diameter: 5-12
Max. Panel Length: 2400, 2600, 3000
Welding Materials:
Heated crimped round bars, electro galvanized round bars, heated crimped bars with rib, electro crimped steel bar with ribs

Steel bar welded wire mesh grating panels for Reinforced Concrete Construction Application:
Welded steel bar panels are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.

We offer heavy type welded wire mesh panels including steel bar welded wire mesh. Our products have high precision, small difference and good quality. Steel bar welded mesh panel is a kind of mesh type bar grating with the vertical and horizontal bars respectively welded together to a certain pitch and arranged at right angles to each other.

Steel bar welded mesh grating panel is well received and popularly used as a kind of new, efficient and excellent quality concrete structure steel materials in various industrial and civil buildings. It is mainly used in making of floors, ceilings, wall body, concrete road, bridge surface, airport, tunnel lining, concrete piping, etc.

Welded Steel bar grating costs less time and labor in work. It saves about 50 to 70 percent work time compared with common binding wire mesh. The use of bar grating can also strengthen the concrete parts to reduce surface breaking ratio. Welded bar grating for reinforcement is especially suitable for big area concrete engineering. Using of welded bar reinforcement can save about 10 percent of the total cost of the project.
