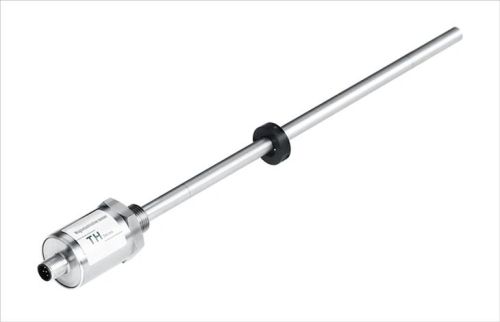

Contactless Magnetostrictive Linear Position Sensor

Listing ID #7027505

12,970 - 45,680 / Piece
Get Latest Price
  • MOQ 1 Piece
  • Resolution16-bit D/A
  • Measuring rod pressure35MPa continuous/70MPa peak
  • Operating Voltage24VDC (-15/+20%) overvoltage protection, reverse polarity protection
  • output signal4~20mA, , 0~10Vdc, 0~5Vdc, Start/stop. SSI
  • Supply Type Exporter, Supplier, Distributor, Importer, Trader
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 4 Years
  • Nature of Business Manufacturer
  • Year of Establishment 2020

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Resolution 16-bit D/A
  • Way out Straight out cable, aviation plug
  • Performance Non-linearity <±0.01%F.S,(Minimum ±50μm) repeatability <±0.001%F.S (minimum ±1μm)
  • Installation method Threaded installation, M18X1.5, M20X1.5 or 3/4″-16UNF or customized
  • Operating Voltage 24VDC (-15/+20%) overvoltage protection, reverse polarity protection
  • Operating temperature - 40℃~+85℃
  • Stem material Stainless steel 304, 316
  • Measuring rod pressure 35MPa continuous/70MPa peak
  • Measuring range 50~5000mm
  • output signal 4~20mA, , 0~10Vdc, 0~5Vdc, Start/stop. SSI
  • Protection class IP65 (IP67 or IP68 can be customized)

Contactless Magnetostrictive Linear Position Sensor



♦ hydraulic control system, metallurgical equipment, wind power generation

♦ engineering machinery, rubber machinery

♦ port machinery, injection molding machine

♦ hydroelectric power stations, solar power plants, real-time monitoring of the reflection angle

♦ flight simulator



Features :



• Sealed structure, strong and durable

• Ideal for clevis cylinders or spaces where space is limited

• Non-contact measurement, never wears out

• Absolute position output, no need to return to zero

• Nonlinearity, ±0.01%F.S of full scale

• Repeatability, ±0.001%F.S of full scale
