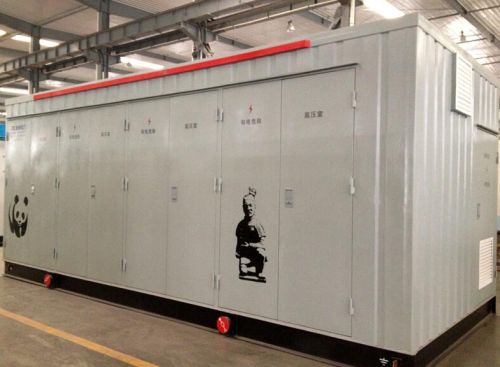

Contact SupplierWe are offering containerized substation, rated frequency hz 50
rated voltage kv 12
power frequency withstand voltage to earth & inverval port kv 4248
lightning impact withstand voltage to earth & interval port kv 95110
rated current a 630
rated short time withstand current ka 25(2s)
rated peak withstand current ka 63
rated voltage v 400
main circuit rated current a 100-2000
rated short time withstand current ka 30(1s)
rated peak withstand current ka 63
feeder out return circuit current a 10-800
feeder out return circuit no. circuit 1-12
compansated capacity kvar 0-360
rated capacity kva 50-1250
resistance voltage % 4 or 4.5
distribution range ±2*2.5% or ±5%
bind group y,yn0 or d,yn11.
