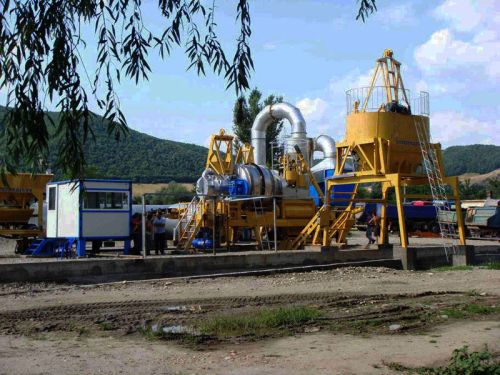

Continuous Asphalt Mixing Plant

We are offering continuous asphalt mixing plant.
Configuration of continuous asphalt mixing plant .1. Aggregate feed bins : multiple bins to storage 2-4 size virgin aggregate , variable speed feeder conveyors control and regulate the flow amount of cold feed , optional vibration motors are installed on the wall of sand bin .2. Bitumen supply system: insulated bitumen tank keep the liquid or emulsion bitumen , pump station together combined with the pump ,3. Drying & mixing drum : drying and mixing drum is the core components for stationary and mobile asphalt drum mix plant, the cold aggregate go through the drum by the gravity ,the moisture is removed and the aggregated is heated ,heated aggregate combined with the bitumen ,filler are mixing in the same drums , thermocouple included to control the hot mix asphalt temperature as required .the drum and burner is installed on the same chassis .4. Special burners : variable fuel options for the customized demand : heavy and light oil , natural gas or coal . Special design burners with minimal fuel consumptions5. Load out elevator : sinosun group equip the latest generation bucket elevator. The hot mix asphalt will discharged on the bucket elevator direct into the storage bin .6. Storage silos : the hot mix asphalt is suspended in the storage silos , asphalt truck can unload the mixed material under the silos directly .7. Dust collection system : optional dust collection system are available : multiple cyclone type , water collection type or bag house filter (latest generation) . Which will meet different investment demand . Lowest exhaust emissions8. Automatic control system : auto and manual control free exchange ,the latest control system will keep the asphalt drum mix plant producing high quality hot mix asphalt .emergency safety button included.
China
asphalt plant
manufacturer and supplier.we offer "
asphalt batch mix plant
including
mobile asphalt plant,
asphalt drum mix plant,
continuous asphalt mixing plant,
asphalt mixing plant,
asphalt plant for sale,
and other products
