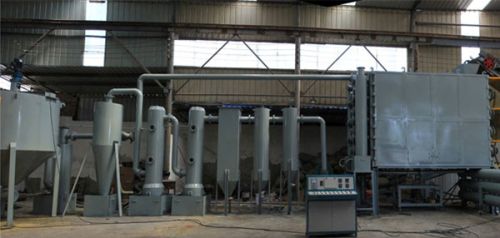

This machine is equipped with  Auto-feeding Conveyor, Biomass Gasifier equipment, Dust-Removal Device, Gas cleaner system, PLC controlled and manual / automatic dual- control System, Cooling and Discharging conveyor, Carbonization Furnace and other equipments.

Details :

• While Carbonization of the raw material inside of the Carbonization Furnace (like coconut shell, sawdust, Palm shell, rice husk, straw, wood scrap etc.), the produced Flue Gas is recirculated in pipeline and is fed back to Heating System after purification, becomes combustible gas (carbon monoxide, methane, ethane).
• When the temperature reached, Carbonization furnace starting carbonizing the raw materials fed, producing the flue gases, which becomes a combustible gas after spray pour, cooling purification by the cooling purification system, to continue the carbonization Process, then Gasifier stops working or set on the minimal use. Temperature is been regulated and controlled by control system.
• The Feeding of the Raw Material is also regulated for the Qualified End Product. Based on the requirement of the Plant ie output of the finished Product, we can deploy a set of Furnace or Bank of furnace to yield the desired production quantum.
• Plant Capacities - 300 kg/hr to 2000 Kgs/hr continuous type.

This machine is equipped with  Auto-feeding Conveyor, Biomass Gasifier equipment, Dust-Removal Device, Gas cleaner system, PLC controlled and manual / automatic dual- control System, Cooling and Discharging conveyor, Carbonization Furnace and other equipments.

Details :

• While Carbonization of the raw material inside of the Carbonization Furnace (like coconut shell, sawdust, Palm shell, rice husk, straw, wood scrap etc.), the produced Flue Gas is recirculated in pipeline and is fed back to Heating System after purification, becomes combustible gas (carbon monoxide, methane, ethane).
• When the temperature reached, Carbonization furnace starting carbonizing the raw materials fed, producing the flue gases, which becomes a combustible gas after spray pour, cooling purification by the cooling purification system, to continue the carbonization Process, then Gasifier stops working or set on the minimal use. Temperature is been regulated and controlled by control system.
• The Feeding of the Raw Material is also regulated for the Qualified End Product. Based on the requirement of the Plant ie output of the finished Product, we can deploy a set of Furnace or Bank of furnace to yield the desired production quantum.
• Plant Capacities - 300 kg/hr to 2000 Kgs/hr continuous type.
