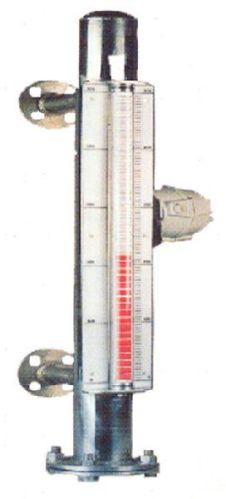

Continuous Magnetic Level Indicator

Khemas LEVEL continuous magnetic liquid level measurement devices are flanged on the side/top of vessels or containers. It consists of a chamber housing pipe with a float inside attached with a permanent magnet. External to the pipe a distinct two coloured (Red & White) Rollers consisting of a bar magnet move freely in the indicator housing

As per movement of the float inside the chamber. They turn 180⁰C from White to Red in an increasing level and Red to White in a decreasing level. These two distinct colours help distinguish the level of liquid and the other as empty portion of the vessel. This local indication is visible even from a distance. A scale is provided along the side of the indicator to read the actual measurement of level. The level of liquid in the vessel is optically displayed as a Red column even in case of power failure.

Khemas Level can be provided with switches as an accessory to give signals at any desired level throughout the range and is adjustable at site. Khemas Level can also be provided with Hot Water/Steam Jacketing.
