Control Power Transformer

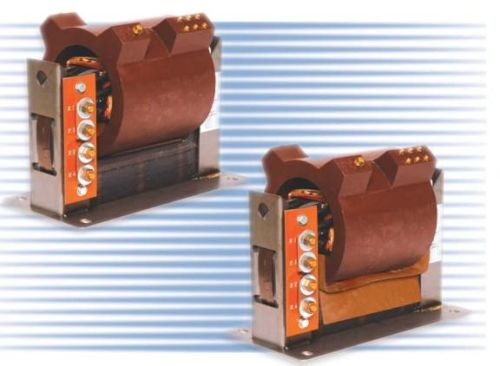

We are offering abb cpt-ik-5 control power transformer 5 kva, 5 kv and 15 kv class, 60 hertz.
Abb cpt-ik-5 control power transformer 5 kva, 5 kv and 15 kv class, 60 hertz cpta-60-5-2400-d148
indoor control power transformers product bulletin 1vap600001-db
application
the cpt-ik is an indoor, self-cooled, single-phase, dry-type control power transformer designed to provide control power in medium voltage switchgear. Nominal primary voltages range from 2.4 kv to 14.4 kv, 60 hertz. Secondary voltages are configured for series/parallel operation at 120 v or 240 v. Standard bil ratings of 60 kv are available for 5 kv applications, and 95 kv bil for 15 kv applications. the cpt-ik is used in an ambient temperature of 30°c for full kva rating or 55°c for 86% of full kva rating. The winding temperature rise for 5 kva units is 55°c. Styles in addition to those listed in this bulletin are available upon request
style kva voltage class primary rating secondary voltage taps
cpta-60-5-2400-d148 5 5 kv 2400 120/240 a
cpta-60-5-4160-d148 5 5 kv 4160 120/240 a
cpta-60-5-4800-d148 5 5 kv 4800 120/240 a
cpta-95-5-7200-d148 5 15 kv 7200 120/240 a
cpta-95-5-8400-d148 5 15 kv 8400 120/240 a
cpta-95-5-12000-d148 5 15 kv 12000 120/240 a
cpta-95-5-12470-d148 5 15 kv 12470 120/240 a
cpta-95-5-13200-d148 5 15 kv 13200 120/240 a
cpta-95-5-13800-d148 5 15 kv 13800 120/240 a
cpta-95-5-14400-d148 5 15 kv 14400 120/240 a.
