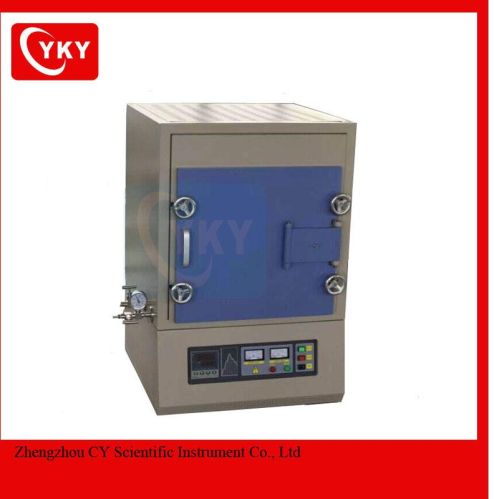

Controlled Atmosphere Furnace

We are offering controlled atmosphere furnace.
Description of the atmosphere furnace：
1700c atmosphere furnace can protect materials from oxidation and decarburization with flowing nitrogen and other inert gases. Atmosphere furnace is widely used in all kinds of colleges and universities laboratory, chemical laboratory, industrial and mining enterprises for chemical analysis, physical measures, as well as metal, ceramic sintering, such as piece of small steel heating, calcination, heat treatment.
Outstanding features of the atmosphere heat treatment furnace:
1. Max. Energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
2. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
3. Pid automatic control via current limiting phase angle fired the resistor,e.g scr (silicon controlled rectifier)
technical parameters of the atmosphere furnace
model cy-a1700
display led
max. Temperature 1700°c
working temperature ≤1600°c
heating rate suggestion 0-20°cmin
temperature accuracy +-1°c
inside chamber 300×300×400mm
heating element mosi2
thermal couple b type
temperature control pid automatic control via scr power control
heating curves 30 steps programmable
rated power 10kw
working temperature ac 110-480v 50-60hz
warranty 12 month (exclusive wearing part)
