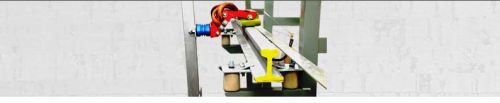

Insutech offers complete Conventional DSL System which generally comprises of Indian Standard Angle (ISA) or Rails, Brackets, Current Collectors Assemblies, Copper Expansion Compensator, Power Feed Clamp, Control Clamp.
The conventional assembly is ideally suited when the current ratings
are beyond 400Amps under normal operation and shall be suited for lower ratings where the environment is dusty.
Brackets are welded to the web of the girder at 2.0m intervals.
When the brackets have been fitted, the four conductor rails (three phases and earth) are assembled with proper alignment of all the four conductors. The Current Collector are mounted onto the Crane, which
is in contact with the Conductor Rail and thus provides power to all
the Panels of the Crane.
Insutech Conventional DSL Systems is ideally suited for Steel Plants, Smelters, Power Plants outdoor operating conditions.
