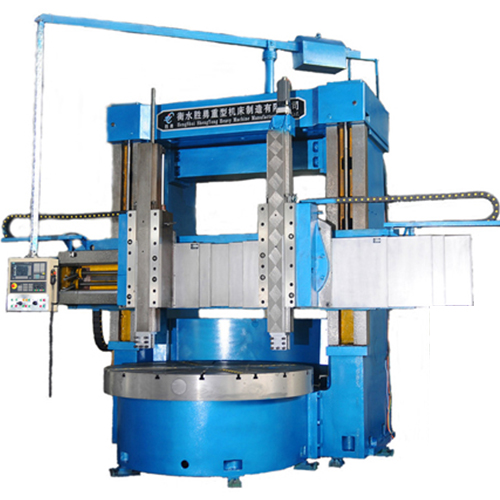

Conventional Vertical Lathe Machine

Conventional Vertical Lathe machine is a kind of advanced equipment with good performance and a wide range of technology, high production efficiency, machining applicable to all industries, can be employed for circular arc surface and curve surface, inner and outer conical surface,inner and outer cylinder, thread rough and finish machining.
Characteristics of Conventional Vertical Lathe machine:
1 Worktable has a good rigidity with smoothly cutting,very easy for installation and adjustment .
2 Conventional Vertical Lathe machine layout can effectively reduce the load of main shaft and the bearings,thus maintaining good long working accuracy.
3 Spindle bearing adopts high precision double row cylindrical roller bearings, the guide rail of the worktable uses the constant flow hydrostatic guideway and a constant temperature cooling to ensure the accuracy of rotation, stiffness, strength and thermal stability of conventional vertical lathe.
Technical specification of Conventional Vertical Lathe machine C5263
1 Maximum turning diameter 6300 mm
2 Maximum Height of workpiece 315036504150 mm
3 Maximum Weight of workpiece 5080100 t
4 Table diameter 45005750 mm
5 Speed range of table 0.5-50rmin
6 Maximum torque 1 60KNmin
7 Vertical Travel of tool post 1600 mm
8 Horizontal travel of tool post 3415 mm
9 Rotation angle of tool post -15°-±30°
10 Power of main motor 75kw
