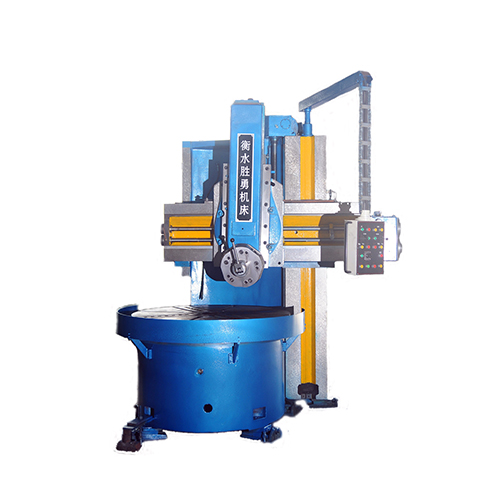

Conventional Vertical Turning Lathe VTL Machine

Vertical turning lathe has conventional type and CNC type. Conventional vertical turning lathe is particularly suitable for processing motor end caps, pump, disk parts,wheels, brake hubs and other types of short shaft.Conventional vertical turning lathe and CNC vertical turning lathe is the best choice for automobiles, agricultural machinery, engineering machinery, electrical and other industries .
Conventional vertical turning lathe has the following characteristics.
1 Table spindle is centered by high-precision double-row short roller bearing whose radial clearance can be adjusted.
2 Table base and the lathe bed are fixed in the foundation respectively.
3 Main drive is provided by DC motor (two-step speed-change) or AC motor (16-step speed-change) to engage in table speed-change.
4 All the guideways Of the bed and column and beam have been supersonic frequency quenched.
Conventional vertical turning lathes
 Technical specification of Conventional vertical lathes C5125
1 Table diameter 2300mm
2 Maximum turning diameter 2500mm
3 Maximum height of workpiece 1350mm
4 Maximum weight of workpiece 10 t
5 Speed change of table 2.5-80 rmin
6 Working table Step of rotation speed 16
7 Feed rates 0.8-86 mmmin
8 Step 12
9 Horizontal travel of tool post 1600mm
Vertical travel of tool post 915mm
10 Horizon
