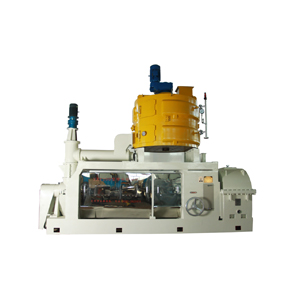

Cooking Oil Preliminary Pressing Machine YZY290

Cooking oil preliminary pressing machine yzy290
usage:
yzy290 type is a continuous spiral edible oil processing machinery,this edible oil processing machinery have both prepressing and pressing function.it’s suitable for peanut oil plant processing,cottonseed kernels, rapeseed, sunflower seed kernel, corn germ oil seeds such as oil seed.
Main technical parameters
1.handling capacity: press 80-100ton per day;
pre pressing 180-240 ton per day
note: different parts of the fuel, and residual oil production will change.
2. Motor: y355m1-6-160kw or y315l2-6-132kw(main motor)
7.5kw or 11kw ewfl87-34.5-y-7.54(reducer )
3.0kw bly18-17(reducer)
2.2kw xwd3-11(reducer)
3.steam pressure: 3-4kgcm³
4.pressing shaft speed: 28-51rpm
5.feed shaft speed: 85rpm
6.steaming and frying temperature: 60-110℃
7. The thickness of the cake: 15-20mm
8. Dimension: 5100×2150×3930mm
9. Net weight: 14500 kg
features
the main performance characteristics of yzy290 edible oil processing machinery are as follows:
1. The capacity is large, workshop covering an area of small, low power consumption, reasonable and generous appearance.
2. Squeeze out the cake structure loose and not scattered, is helpful to sovent penetration.
3. The oil and water content in cake are suitable for solvent leaching.
4.pressing chamber spiral using light pressure, work pressure, the pressure step by step, such as advanced technsology, low residual oil in the cake.
5. School cake agency uses worm gear and worm patent technology does not need to stop, the school adjustment easy and quick
