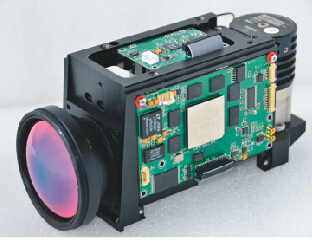

Cooled Thermal Imaging Module/ Cores

We are offering cooled thermal imaging module/ cores.
Application
we provide cooled thermal imaging modules to research institutes and enterprises for the thermal camera development and system integration. Apply to long distance target detection, recognization and warning in the fields of military industry, aerospace industry, frontier guards, coast defense, etc.
Feature
★ cooled hgcdte fpa microbolometer, low noise and high sensitivity.
★large area array，small pixel array，super-high ifov.
★fpga intelligent image processing platform, high frame frequency and clear image.
★ multiple control and image output interfaces, easy to integrate.
★ sterling cooling system, compact structure, small volume and light weight.
Technical specification
detector cooled hgcdte fpa
pixel 640 ×512
pitch 15μm
spectral band (a mode)3.7μm～4.8μm
frame frequency 25hz，50hz，100hz
integration time adjustable
analog video pn
digital video 16bit ttllvdscameralink
input voltage dc+24v （dc8～42v optional）
power dissipation ≤20w（cooling）
≤14w（temperature controlling）
starting time 6min≤（20℃），8min≤（50℃）
operating temperature -40℃ ～ +60℃
storage temperature -50℃ ～ +70℃
netd detector≤20mk(f2）
dimension 145mm×76mm×88mm
weight 810g（exclude the base part）
communication interface rs232rs422 open protocol
function
◆ manual backgroundshutter calibration
◆ whiteblack heat polarity switch
◆ 2x electronic zoom
◆ manualauto image gainbrightness adjustment
◆ cross cursor displayhide and position adjustment
◆ image enhancement, smoothness, sharpen and space-ground mode algorithm.
◆ mirror image and flip the image horizontally or vertically.
◆ motor focusing, field switch and continuous zooming command drive
◆ sampling voltage auto-focusing signal
◆ system parameters self-checkreset.
