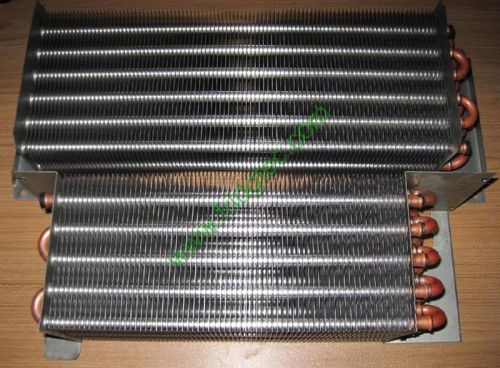

Cooler Copper Tube Fin Evaporator

We offer Cooler Copper Tube Fin Evaporator .
GOOD QUALITY DISPLAY COOLER COPPER TUBE FIN EVAPORATOR MADE IN CHINA
Typical benefits:
- Well distributed liquid dispensing of windwardarea of evaporator or condenser coil
- High quality mechanical expanding orsuper high pressing hydraulic expanding between copper tube and fins, tightcontacting and optimized heat exchanging.
- Free pitch distance selection, reducethe frost affection in low temperature
- With single or double reverse-flow system, small water resistance, good heat exchanging- With super high temperature vacuum drying, ensure inner without impurity orwater substance.
Application:
Suitable for R134A, R22, R404A, R407C, CO2 refrigerant and so on
Widely used for commercial refrigerators, commercial freezer, air-conditioningsystems ,show case cabinet, dehumidifier, ice maker etc…
Material:
Material: copper tube, aluminum fins, galvanized steel bracket
- Copper tube: O.D.7mm, O.D.9.52mm, O.D.10mm, or other size by request, innerthread groove or smooth tube
- Aluminum foil: hydrophilic or uncoated bare
- Fin type: louver, flat, corrugated or slit fin
- Side plate: galvanized steel plate
Voltage:220V150HZ and 380V350HZ or other type.
Size: from 14HP to 10HP
Different alternative condensing fans available: shaded pole or Axial fanmotor.
Producing procedure: tube bending, punching fin, tube expanding, fins installation,drying, welding, leakage test, tube bending, quality inspection, packing
Tightness testing: gas testing under 3.0Mpa air pressure
