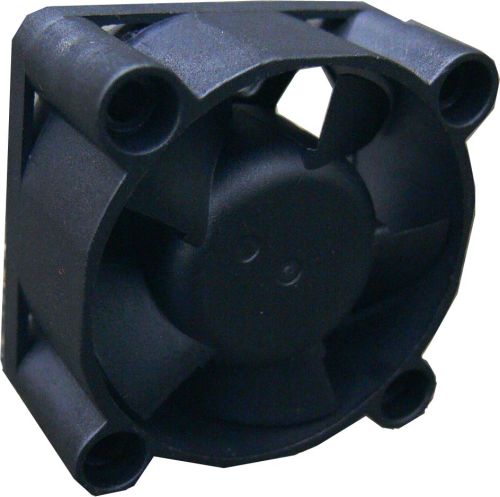

Contact Supplierwe are offering cooling fans
frame size:40*40*20mm
voltage:5v\12v\24v
bearing type:sleeve bearing/ball bearing
speed: 5500rpm/6500rpm/8000rpm
noise: 25dba/26dba/32dba
safety approvals:ce、tuv、ul、cul
electric strength:1mamax at 1000vac for 1 min between lead wire and frame.
insulation resistance:10m ohm between lead wire and frame(dc 500v)
life expectancy(ball bearing):50,000hrs rain at 25 degree c relative humidity 65%+/-20%
life expectancy(sleeve bearing):>30,000hrs rain at 25 degree c relative humidity 65%+/-20%
operation temperature:-10 to 70℃
storage temperature:-40 to 75℃
