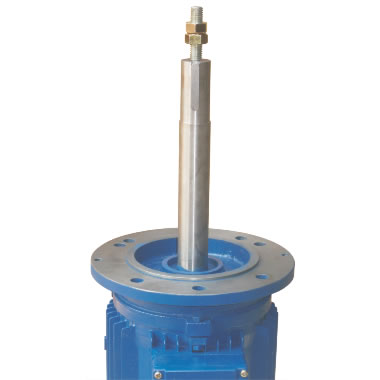

Cooling Tower Motor

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Many processes generates excess heat which is cooled by cooled water. The heated water is cooled by cooling towers. The motors for fan of cooling tower works under harsh conditions, the ambient....

View More Details

Send Enquiry

Company Information

POWER DRIVES (GUJ.) PVT. LTD.

Makarpura, Vadodara, Gujarat

View Number

Member Since 15 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Many processes generates excess heat which is cooled by cooled water. The heated water is cooled by cooling towers. The motors for fan of cooling tower works under harsh conditions, the ambient temperature is quite high and highly moist surrounding. “mototek” cooling tower motors are protected with IP55 enclosure protection to minimize the entry of moisture inside the main motor body and terminal box. Efficiency and cooling are batter to withstand the higher ambient temperature. Being under continuous and loaded operation, energy saving is must. It is recommended to use higher efficiency motor for cooling tower. Bearing used are of rubber shield and for better radial loads, to ensure the efficient operation with longer life and minimum friction.

KW / HP	RPM	FRAME	L	Da	La	Db	Lb	Dc	Lc	M	N	P	S	T	F	Ga	Gb
0.37 / 0.5	1500	71	178	17	55	14	25	M12	30	130	110	160	10	3	5	16	11
0.75 / 1.0	1500	80	200	20	60	19	50	M16	35	165	130	200	12	3	6	21.5	15.5
0.75 / 1.0	1000	90S	230	25	60	24	50	M20	40	165	130	200	12	3	8	27	20
1.1 / 1.5	1000	90L	230	25	60	24	50	M20	40	165	130	200	12	3	8	27	20
1.5 / 2.0	1000	100	258	30	60	28	50	M24	50	215	180	250	15	4	8	31	24
2.2 / 3.0	750	132S	321	40	60	38	50	M30	50	265	230	300	15	4	10	41	33
2.2 / 3.0	1000	112M	277	30	60	28	50	M24	50	215	180	250	15	4	8	31	24
3.7 / 5.0	1000	132S	321	40	60	38	50	M30	50	265	230	300	15	4	10	41	33
3.7 / 5.0	750	132M	340	40	90	38	75	M30	50	265	230	300	15	4	10	41	33
5.5 / 7.5	1000	132M	340	40	90	38	75	M30	50	265	230	300	15	4	10	41	33
5.5 / 7.5	750	160M	416	45	90	42	75	M30	50	300	250	350	19	5	12	45	37
7.5 / 10.0	1000	160M	416	45	90	42	75	M30	50	300	250	350	19	5	12	45	37
7.5 / 10.0	750	160M	416	45	90	42	75	M30	50	300	250	350	19	5	12	45	37
9.3 / 12.5	1000	160M	416	45	90	42	75	M30	50	300	250	350	19	5	12	45	37
9.3 / 12.5	750	180M	467	50	100	48	105	M30	50	300	250	350	19	5	14	51.5	42.5
11.0 / 15.0	1000	160M	416	45	90	42	75	M30	50	300	250	350	19	5	12	45	37
11.0 / 15.0	750	180M	467	50	100	48	105	M30	50	300	250	350	19	5	14	51.5	42.5
