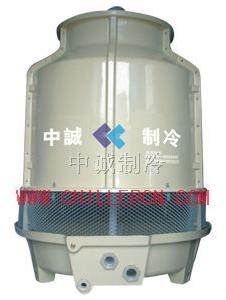

Cooling tower, Brand Name : CNCEN

We are offering cncen brand cooling tower.
1、进水温度：37℃-200℃ water inlet 　temperature:37℃-200℃
2、出水温度： 32℃-60℃ water oulet temperature:32℃-60℃
3、湿球温度：28℃ wet bulb temperature:28℃
4、干球温度：31.8℃ dry bulb temperature:31.8℃
5、大气压力：9.94×104pa atmospheric pressure:9.94×104pa.
parameter flow(m3/h) fan dia (mm) theoretical air(m3/h) motor power(kw) rated current of motorl (a) outline size standard type low-noise type
(mm)
tower height max outside dia. weight(kg) weight(kg)
h dmax net weight running weight net weight running weight
model
zc-06t 8 584 3400 0.25 1 1420 940 54 140 61 148
zc-08t 10 584 4500 0.25 1 1660 940 57 141 64 156
zc-10t 12 584 5700 0.25 1 1700 1040 76 200 85 221
zc-12t 15 584 6800 0.25 1 1780 1100 84 219 94 241
zc-15t 20 760 9100 0.37 1.4 1860 1250 110 265 124 295
zc-20t 25 760 11300 0.55 2 1920 1400 140 300 158 334
zc-25t 30 884 15000 0.55 2.6 1970 1400 160 364 174 404
zc-30t 40 884 17000 1.11 2.6 2150 1700 165 369 185 410
zc-40t 50 884 23000 1.1 3.6 2280 1900 191 433 215 481
zc-50t 60 1190 28000 1.5 4.4 2400 2200 368 730 412 810
zc-60t 70 1190 33000 1.5 5.2 2530 2200 423 753 476 839
zc-70t 80 1470 40000 1.5 5.2 2580 2350 521 913 584 1015
zc-80t 90 1470 45000 2.2 7.7 2710 2500 607 1023 680 1137
zc-90t 100 1470 50000 2.2 7.7 2820 2900 695 1130 776 1255
zc-100t 125 1800 57000 4 8.8 3130 3300 908 1588 954 1625
zc-125t 150 1800 70000 4 8.8 3350 3300 1015 2035 1062 2112
zc-150t 175 1800 85000 4 8.8 3670 3600 1310 3540 1468 2857
zc-175t 200 1800 99000 4 8.8 3900 4000 1613 3317 1797 3671
zc-200t 225 1800 113000 5.5 12.6 4165 4500 1796 3465 1987 3866
zc-225t 250 2400 128000 5.5 12.6 4165 4500 1910 3514 2125 3999
zc-250t 300 2400 142000 5.5 12.6 4290 4500 2121 3876 2370 4301
zc-300t 350 2400 171000 7.5 17 4435 4900 2235 3990 2495 4426
zc-350t 400 3000 210000 11 24.6 4735 5300 2420 6101 2702 6751
