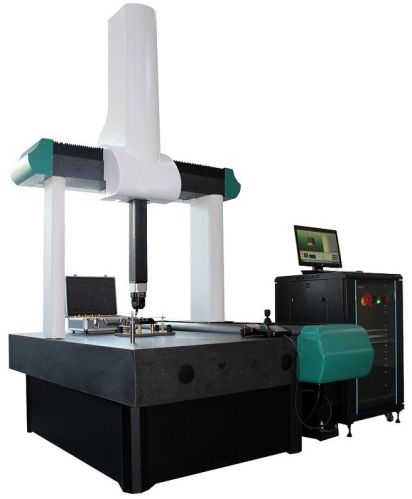

Coordinate Measuring Machine

We are offering coordinate measuring machine.
Adoption of integrated granite-material guide ways makes sure of stable thermal performance of themselves;
the totally enclosed surrounding guide way structure makes measuring more accurate;
21 terms of compensation technique as to mechanical geometric errors improve the machine’s precision greatly;
three axis’s adoption of quiescent air pressure air-bearing guide way, comprised of air-bearings which are self-sways, small resistance, no abrasion and stable motion;
unenclosed structure leads to various measurement configuration solutions. Therefore, measurement experience gets so flexible;
adoption of advanced f.e.m(finite element method) makes it have a stable and reliable resistance of effective deformation.
Type
micro575
micro7106
micro9128
mpee (um)
1.8+2.5l1000
2.2+3l1000
2.8+3.3l1000
mpep(um)
1.8
2.2
2.8
dimension(mm)
1217*1788*2466
1417*2088*2566
1617*2288*2766
measuring range(mm)
500*700*500
700*1000*600
900*1200*800
load capacity(kg)
1000
1200
1500
as for the same specification machine, precision is different due to different configuration
