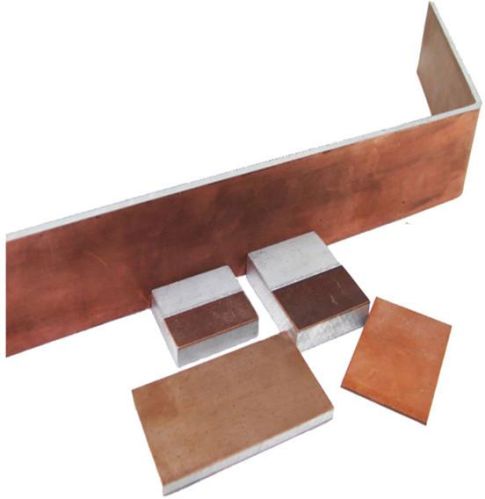

Copper Clad Aluminium Bimetal Bus Bar

We offer Copper Clad Aluminium Bimetal Bus Bar.
1. Material: Copper T2, Aluminum 1series, 3series, 8series etc.
2. Cast-rolling process:
Solid-Liquid machining processing technique to bond copper and aluminum in oxygen-free environment permanently and firmly.
3. Application:
3.1 Electric power industry (conductive industry) 3.2 Decoration industry
3.3 Shipping industry 3.4 Stamp & seal
Technical Parameter:
Secification�thickness * width� 0.1-15mm * 30-2000mm
Coer and Aluminum weight ratio Cu:AL 32%-40%: 60%-68%
Coer and Aluminum volume ratio Cu:AL 15-20: 80-85
Density�gcm3� 3.5-3.9
Resistivity�Ωmm2m� �0.019
Tensile Strength�Nmm2� ﹥120
Elongation �%� 27-38
eeling Strength�Nmm� ﹥12
Specification:
Weight Display in Common Specification
Specification a*b�mm� 3*30 3*40 3*50 � � � � �
Weightmeter�kg� 0.31 0.42 0.53 � � � � �
Specification a*b�mm� 4*40 4*50 4*60 4*80 � � � �
Weightmeter�kg� 0.56 0.7 0.84 1.12 � � � �
Specification a*b�mm� 5*40 5*50 5*60 5*80 � � � �
Weightmeter�kg� 0.7 0.875 1.05 1.4 � � � �
Specification a*b�mm� 6.4 6*50 6*60 6*80 6*100 � � �
Weightmeter�kg� 0.84 1.05 1.26 1.68 2.1 � � �
Specification a*b�mm� 8*50 8*60 8*80 8*100 8*120 8*200 � �
Weightmeter�kg� 1.4 1.68 2.24 2.8 3.36 5.6 � �
Specification a*b�mm� 10*60 10*80 10*100 10*120 10*150 10*200 10*250 10*300
Weightmeter�kg� 2.1 2.8 3.5 4.2 5.25 7 8.75 10.5
