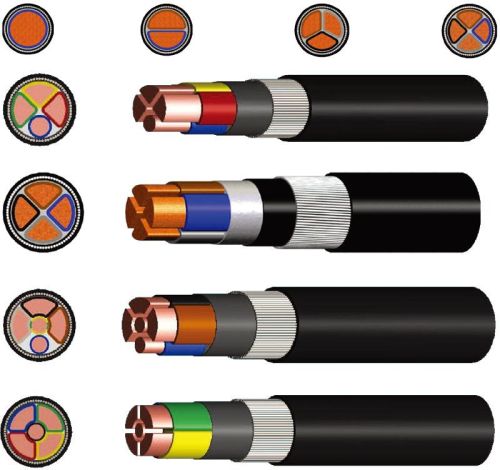

Copper Conductor PVC Insulated Steel Wire Armoured PVC Sheathed

We offer Copper Conductor Pvc Insulated Steel Wire Armoured Pvc Sheathed.
APPLICATION
VV32-Copper Conductor PVC Insulated Steel Wire Armoured PVC Sheathed Power Cable
This product is suitable for using in power distribution networks or fixed installations for industrial equipments with rated voltage up to and including 0.61KV
BASIC INFORMATION
Code Name
VV32
Rated Voltage (UoU)
0.61KV
Cable Structure
Copper ConductorPVC InsulationPVC Inner SheathSteel Wire ArmouredPVC Outer Sheath
CONSTRUCTION
Conductor
Number of conductors:1,2,3,4,5,3+1,4+1
The conductors shall comply with the requirement given in IEC
Insulation
PVC(Polyvinyl Chloride) according to IEC
Sheath
PVC(Polyvinyl Chloride) according to IEC
Armoured
Steel Wire
CABLE STANDARDS
GBT12706-2008,IEC,BS,ASTM and etc. Upon request.
The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the JiangNan Cables laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.
CHARACTERISTICS
Conductor temperature
Maximum conductor temperature in normal use: 70�
Max.short-circuit temperature
Maximum shall not exceed 160�(5s Max,Duration)
Installation temperature
Ambient temperature under installation shall not be below 0�
Minimum bending radius
The bending radius of cable: (D-Diameter of cable)
-------------------------------------�15D
