Copper Drawinaage Ling,drawing Usage Rod Breakdown Machine

Jcjx-lhd copper drawing and annealing,drawing usage rod breakdown machine

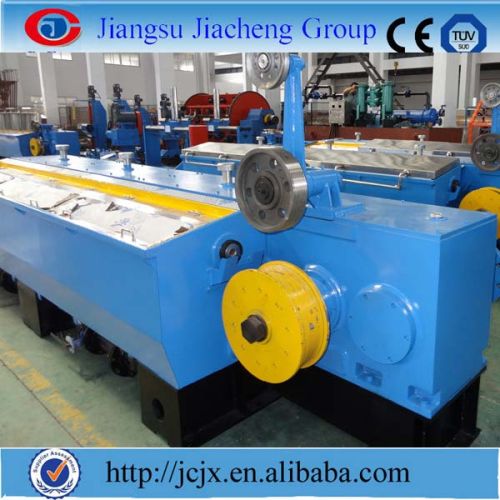

1,our products picture
2, main technical parameters
main spec:
machine model
lht-450-13
drawing speed
25ms
drawing dies no.max
13
wire inlet dia.(mm)
8
wire outlet dia.(mm)
1.2-3.5
fast die change system
set the outlet dia. Or selecting the die number. The computer
calculates automatically. After setting the transmission coefficient,
the machine drawing and rewinding automatically and synchronously
control system
human-machine interface + plc control
all alarm and parameter can be controlled and displayed on the touch
screen, digital control for motor are available for computer operation.
Motor control
dc motor control
transmission type
by precision ground helical gears
slip ratio of mc
1.278
capstan dia.(mm)
φ 450
take-up type
double take-up or ws1000dischargeable type
coiler equipment
main motor
dc280kw
capstan motor
dc75kw
take-up motor
630 double take up 30*2 kw
down coiler 800900 dc 18.5kw or ac 18.5kw
lubrication type
immersion type
lubrication for bearing and gear
by sprecial pump , spray type
continuous annealer
dc6500a
annealing voltage
dc70v
power supply
3 x380v 5060hz
machine size
33000l*4500w*5500h
2-1,the usage of this machine
the machine is used for drawing copper rod from 8.0mm to 1.2-3.5mm, which can be annealed before the outlet wire is wound by the dual take up device or coiler.
2-2,our advantage
1) machine’s body and other key components and parts are produced by our own factory, quality is reliable.
2) annealing machine for big welding parts, prevent the welding body from out of shape and strong vibrations
3) manufacturing factory has 20 years experiences for processing
