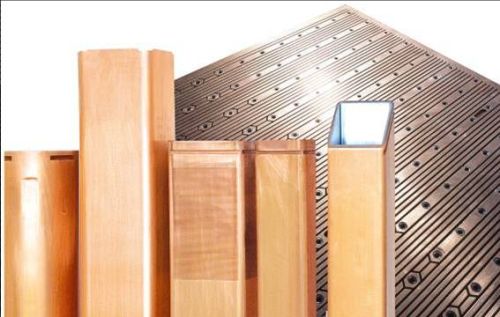

Copper Mould Tube Plate, Brand Name : ZDA for continues casting

equipments & spare parts for continuous casting machine. Copper mould tube( square ,rectangle and round ) crystallizing equipment of continuous casters mould cooling jacket. Repair of copper tube moulds phosphorus de-oxidised copper this alloy has been proven to be excellent for the manufacture of moulds in the continuous casting of billets .the main composition of this alloy are cu +ag 99.90min,p0.00150.040. Copper mould tube the continuous casting of molten steel into billets ,blooms and slab products ,has been highly refined over the years into an extremely sophisticated system .the continuous castin process is expected to produce metallurgically sound products at the lower possible cost ,and this is being achieved in many steelworks throughout the world.
details :

• pecifications of copper mould
• square copper mould tube
• square 60x60-350x350(mm)
• rectangle 120x160-180x300(mm)
• round copper mould tube
• diameter 100-400(mm)

size (mm) :

• 90x90,100x100,110x110,115x115,120x120
• 130x130,135x135,140x140,143x143,150x150
• 155x155,160x160,165x165,175x175,180x180
• 200x200,220x220,100x170,100x173,130x240
• 150x200,150x210,150x220,160x200,160x220
• 150x225,160x235,165x225,175x225,180x220
• 200x240,240x240,235x235
• radius(mm) - 4000,5000,5250,6000,7000,7500,8000,9000,10250,10300,11000,12000
• length(mm) - 700,750,780,790,800,810,812,850,900,1000
