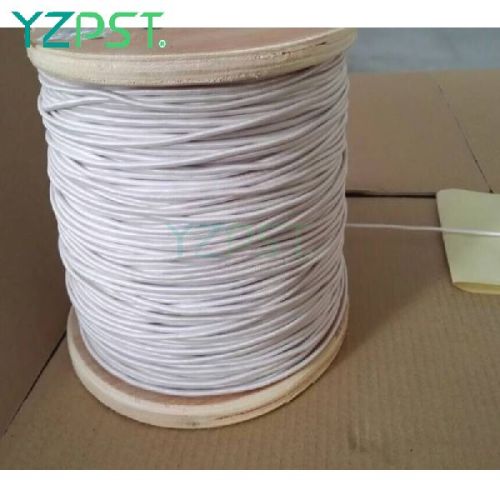

Copper Tinned PVC Electric Cable Litz Wire

Litz wire  SD QA-1 0.10*200 High frequency Litz Magnet Wire, high temperature magnet wire, enameled copper (AWG 7-52 / 3.55mm - .20mm), served magnet wire, profiled Litz magnet wire. Litz Wire is applicable to power supplies, transformers, inductors, semi-conductors, relays, choke coils, filters, electromagnetics, cables and superconductor cables. Litz Wire has Type 1 thru Type 8 Litz Magnet Wire available. YZPST manufactures a wide selection of litz wire for custom applications. Our constructions include numerous fine-strand enameled wire & insulation configurations which enable us to produce litz wires that can perform and with strand various loads and conditions. Our wire, come in various servings and the inner enameled wire conductor can be suited for various temperature classes and for various temperature classes and requirements. We have stock wires in our factory, but our speciality is custom constructed litz. Any litz wire can be twisted in concentricity or aggregation according to the demands  of customers. Conductor Diameter*Strand Number Measured breakdown voltage   (V) Maximal Resistance(Ω/m at20℃) Copper section     (mm²) Envelope of the maximum diameter(mm) Actual diameter(mm)  length per kg    (M/kg) 1UEW+NY QA-2 0.05* 500 >1000 0.0158~0.0207 0.98 1.96 1.87 105 1UEW+NY QA-2 0.05* 1000 >1000 0.0079~0.0104 1.9600 2.75 2.64 54 1UEW+NY QA-2 0.05* 2000 >1000 0.004
