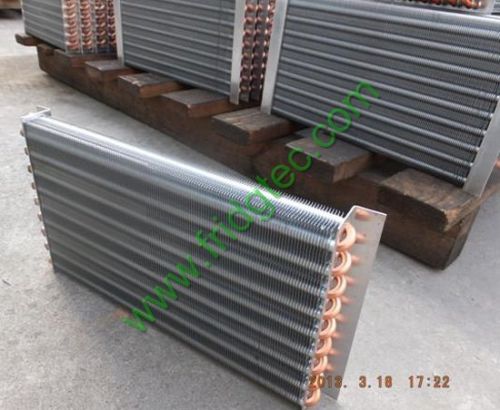

Copper Tube Aluminum Fin Evaporator Coil

We offer copper tube aluminum fin evaporator coil.
China export good quality copper tube aluminum fin evaporator coil
copper tube aluminum foil evaporator condenser & evaporator coil
typical benefits:
- well distributed liquid dispensing of windwardarea of evaporator or condenser coil
- high quality mechanical expanding orsuper high pressing hydraulic expanding between copper tube and fins, tightcontacting and optimized heat exchanging.
- free pitch distance selection, reducethe frost affection in low temperature
- with single or double reverse-flow system, small water resistance, good heat exchanging- with super high temperature vacuum drying, ensure inner without impurity orwater substance.
application:
suitable for r134a, r22, r404a, r407c, co2 refrigerant and so on
widely used for commercial refrigerators, commercial freezer, air-conditioningsystems ,show case cabinet, dehumidifier, ice maker etc…
material:
material: copper tube, aluminum fins, galvanized steel bracket
- copper tube: o.d.7mm, o.d.9.52mm, o.d.10mm, or other size by request, innerthread groove or smooth tube
- aluminum foil: hydrophilic or uncoated bare
- fin type: louver, flat, corrugated or slit fin
- side plate: galvanized steel plate
voltage:220v150hz and 380v350hz or other type.
Size: from 14hp to 10hp
different alternative condensing fans available: shaded pole or axial fanmotor.
producing procedure: tube bending, punching fin, tube expanding, fins installation,drying, welding, leakage test, tube bending, quality inspection, packing
tightness testing: gas testing under 3.0mpa air pressure
