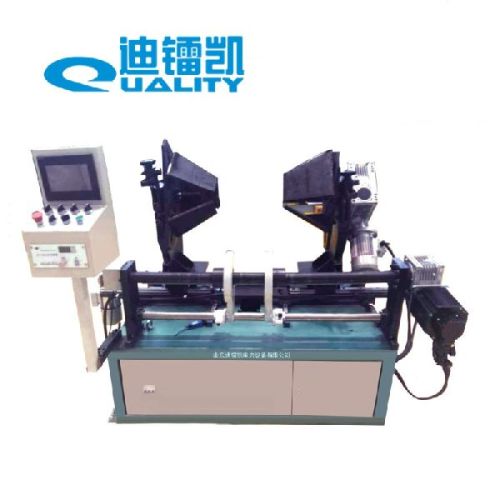

Stereo Roll-core Winding Machine, Brand Name : Dirake

Usage:
TRX roll-core winding machine is applied to S13 transformer.This machine has reasonable design and simple structure.It can keep the roll-core centered,clamped tightly and located easier.The winding center height is adjustable.HV and LV coils can be once completed.
Product Features:
1.Be reliable, efficient, convenient and highy automated.
2.Technical data for several kinds of transformers can be stored and used conveniently.
3.Productivity is improved. It takes only 3 minutes to clamp the roll-core, and 10 minutes to install the gears.
4.It can arrange wire automatically, evenly and tightly, which improve the winding speed and quality.
5.The iron roll-core can rotate and move under electrical control to adjust the winding degree.
6.This machine has frequency control, steady transmission, low noise, electronic reversible counter, good brake, reliable winding and other advantages.
Technical Parameter:
Model
ZRX-4
Core type
triangle roll-core
Capacity
30-800kva
3 column centre distance
820mm
Worktable lifting distance
760mm
Worktable loading weight
2000Kg
Max.main axis rotating speed
250r/min
Control method
Frequency speed adjusting
Total motor power
3.75Kw
Out size
1700 x 1200 x 1650 mm
