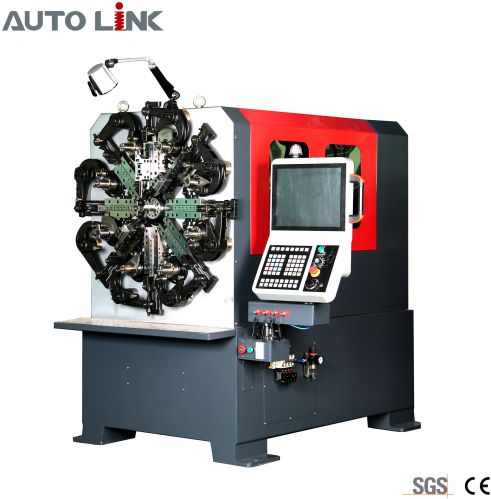

Autolink Fully Automatic Electric Copper Wire Forming Machine

Autolink WF-538R-High-precision 5-Axis CNC Wire Forming Machine with wire rotary functionality, designed for manufacturing complex wire components and a wide range of spring types with exceptional accuracy and repeatability. This machine supports the production of compression, tension, torsion, tower, and flat wire springs, making it ideal for diverse industrial applications. Equipped with a robust wire rotary system and multi-tool compatibility, it allows seamless attachment of bending tools, holding tools, and spinner mechanisms for advanced forming processes. The machine handles wire diameters ranging from 0.5 mm to 3.8 mm and supports a wide range of input materials including stainless steel, aluminium, brass, bronze, carbon steel, cold-rolled steel, copper, nickel, and titanium. Input wire is loaded through a high-capacity decoiler unit (60 kg to 2000 kg), straightened via an integrated straightening unit, and precisely fed into the forming section via feeder rollers and a rotary quill. This CNC wire forming solution is widely used across the electrical industry for components like circuit breakers and switches, in the automotive sector for seat frames and locks, in medical device manufacturing, and for producing wire shelves, baskets, coat hangers, and other consumer products. It is a reliable and efficient choice for companies seeking high-speed, automated, and flexible wire-forming capabilities.
