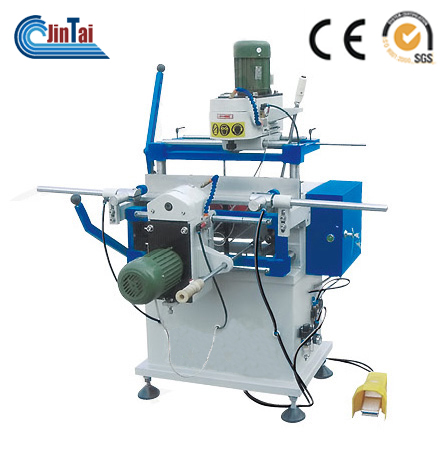

Copy Router Machine

MOQ1 Set(s)
Air pressure---0.4-0.6MpaCopy-routing range---290*100mm
Main motor power---2x0.75KWMilling cutter diameter---Ø5,ø8
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Main features 1. It is equipped with two motor routing heads that can cut holes or a variety of shapes in aluminum or pvc material on two sides without turning or moving the material 2.it can be....

View More Details

Send Enquiry

Company Information

Shandong Jintai Electrical Equipment Co.,Ltd.

Jinan

View Number

Member Since 9 Years
Nature of Business Supplier
Year of Establishment 2005

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Main features
1. It is equipped with two motor routing heads that can cut holes or a variety of shapes in aluminum or pvc material on two sides without turning or moving the material
2.it can be adjusted in vertical and horizontal direction continuously
3. Changeable template for different copy routing.
Technique parameters
main motor power 2x0.75kw
working voltage 380v 50hz
air pressure 0.4-0.6mpa
processing hole size error ±0.2mm
processing deviation from strightness ±0.1mm
milling cutter diameter ø5,ø8
copy-routing range 290*100mm
cutting profile surface roughness ra12.5um
machine dimension 870x1150x1500mm
weight 280kgs
