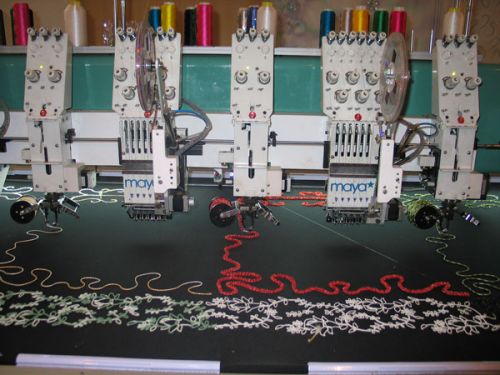

Cording Embroidery Machine

cording embroidery machine
•Color LCD Display：Adoption of LCD display with prompt of character and image. Free shift between Chinese and English prompt. Real time display of embroidery process.
• Design Input & Output：The floppy disk driver can read designs in dsb dst dsz format from disk in TAJIMA format and disk in BARUDAN format. Designs can be output to floppy disk in dsb format.
• Memory：The machine can store 99 designs and 500000 stitches.
• Thread Trimming and changing Thread trimming and changing is available. This function can be set to "off" mode.
• Breakage Detection：Breakage can be detected if breakage function is set to "on" mode. This function can also be set to "off" mode. When breakages detected, the machine will stop automatically and breakage icon is shown.
• Over Frame Limit Protection：Over frame can be prevented to avoid accidental collision.
• Error Prompt：Error prompt is available when mistake and problem occur during operation.
• Satin stitch expansion: Satin stitch can be lengthened or shorten according to your demand.
• Large Memory of Design Quantity: Standard 1000 design. (Max 100,000 designs*); Large Memory of Stitches Quantity: Standard memory 10 million stitches (Max 200 million stitches)* ; Single Design Max Stitches: Standard 5,000,000 stitches or (10 million stitches above)
• Power Failure Protection Measures machine has function of being automatically protected and automatic recovery after power off. And after power failure recovering you can continue your embroidery on the machine, without any going out of original form
• Design pantograph: Designs can be scaled up or down in 1% increments in the range of 50%-200%. Also designs may be rotated in 1% increments. And you can also enlarge or reduce the pattern only in X (or Y) direction.
• Design data editing；stitch by stitch to make editing to the design data (modify, insert or delete and so on.）
• Suitable for the patterns of Ternary Scale and Binary Scale and ZSK patterns.
• Stitch length:0.1mm－12.7mm for flat embroidery, Ternary Scale 0.1－12.1mm；Binary Scale: 0.1－12.7mm
• With clutch control on M shaft. (New)
•High speed in zigzag and taping
Options：
1.Sequins function: Single sequins device single side or double sides installing one every head; one body dual sequins device (one sequins device have 2 sizes on it to make overlap sequins stitching) single side or double sides installing one every head; one body triple sequins device (one sequins device have 3 sizes on it to make overlap sequins stitching) single side or double sides installing one every head.
2.Easy chenille device (lock stitch towel device or mini towel device) can be installed on any kind flat embroidery head. Low cost and let towel stitch embroidery easily comes to very family.
3.Boring device to make hole on the fabrics.
