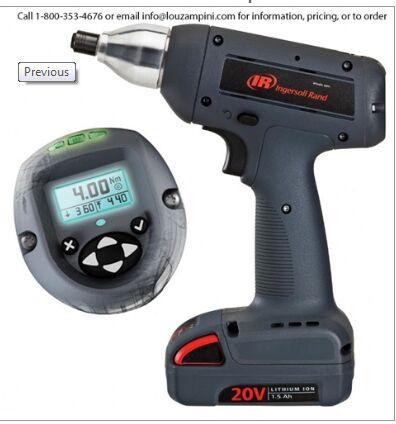

Contact SupplierAbout the Ingersoll Rand QXX2PT08PS4 (shown with optional #BL2010 20V battery)QX Series Precision Screwdriver:
Up to 8 user programmed configurations allows one assembly tool to do the job of many! At a price you can afford today, the QX Series Cordless Precision Screwdriver will quickly become the most valuable tool on your assembly line.
Model QXX2PT08PS4
Model Type Wireless
Torque Range (in.-lb.) 14 - 70
Torque Range (Nm) 1.6 - 8
Speed Range (rpm) 1150
Weight (lb.) 2.09
Weight (kg.) 0.95
Length (in.) 8.2
Length (mm.) 208.3
side-to-center distance (in.) 0.8 - 1.0
side-to-center distance mm. 20.3 - 26.0
Drive Type (in.) 14" Square Drive
Voltage 20V Li-ion
CPN 47104013
Features:
CONTROL
Transducerized Control - provides precision and traceability
Multi-function display and keypad offer quick setup and visual feedback
Program your tool using the keypad, USB port, or wirelessly with the ICS Software
Onboard control boards eliminates need and cost of external controller
Optional wireless communication delivers process control and data archiving
PERFORMANCE
Adjustable speeds up to 1500 RPM
8 user-programmable configurations allow one tool to do the job of many
Advanced strategies, including prevailing torque and torque and angle control
High durability DC Brushless Motor designed for production assembly applications
20 Volt Lithium-Ion batteries delivers high charge capacity and maximum runtime
Cycle Status Indicators - bright LED lights for immediate visual feedback
ERGONOMICS
Comfortable, lightweight and balanced
Super bright LED Headlight with programmable on and off times
