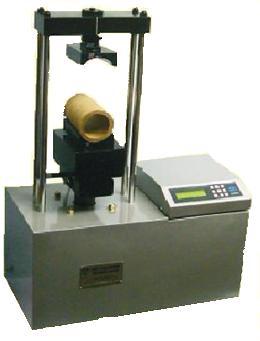

Core Comperssion Tester

OVERVIEW :
The core compression strength of core pipes is the maximum compressive force that a test piece collapses under constant load. Pneumatically operated piston to apply the pressure. Maximum pressure to crush the test sample recorded on a gauge with peak pointer. Has adjustable testing area to accommodate specimen sizes and shapes.
FEATURES :
-> Electro pneumatic system (Maintenance free)
-> Digital Model with Backlit LCD Display for easy readibility
-> Direct Display of Load / Collapsing Force. No Calculations Required
-> Auto-stop and auto-return upon completion of Test.
-> All operations from embedded push buttons on Indicator panel.
SPECIFICATION:
-> Capacity : 1000 Kgf at 6 Kg/cm2
-> Least Count / Resolution : 1 Kgf
-> Accuracy : 0.2% of Full Scale
-> Power Supply : 110 / 220V, 50/60 Hz, 5 Amp
-> Compressed Air : 6 kg/cm2
-> 100 Kg Cast Iron weights (For
