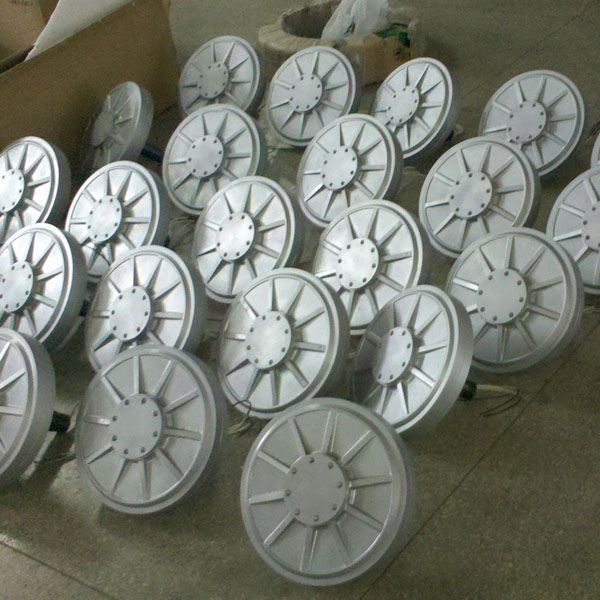

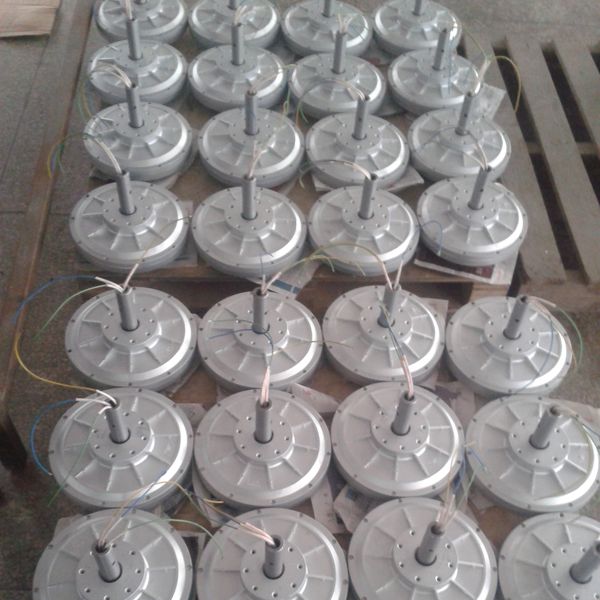

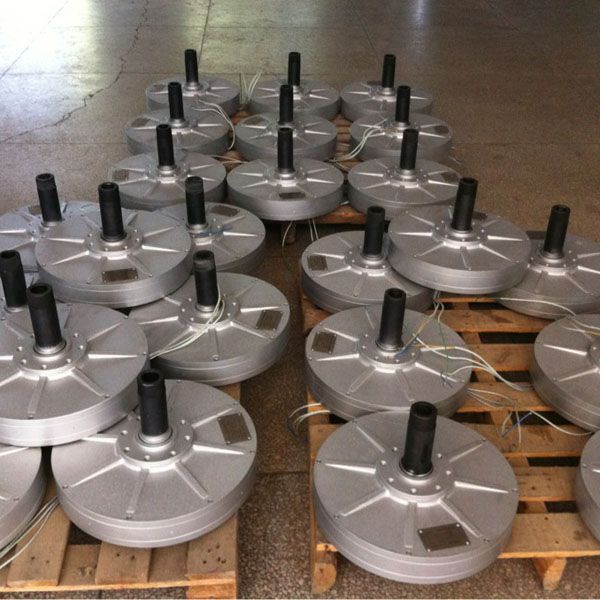

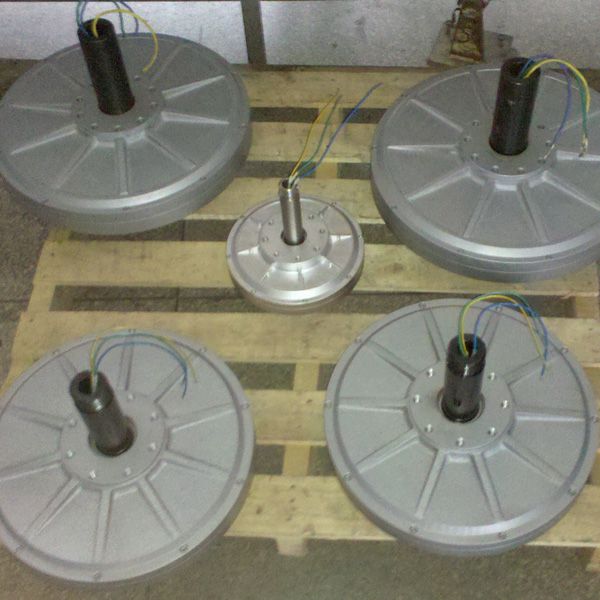

Coreless Pancake Axial Flux Pancake Motor

Get Latest Price

Voltage380V, 220V
Driven TypeHydraulic, Electric
TypePermanent Magnet Alternator
Produce Power50-100kw
Supply TypeManufacturer, Exporter, Supplier, Trader, Buying House
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Xinda Green Energy Co Limited

Nanjing

View Number

Member Since 1 Year
Nature of Business Manufacturer
Year of Establishment 2013

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Driven TypeHydraulic, Electric
Produce Power50-100kw
TypePermanent Magnet Alternator
ConditionNew
Power9-12kw
Voltage380V, 220V

Our disc coreless PMG have advantage in lowRated speed, Low starting wind speed, Small volume, Energy Small, Light weight, Compact structure,High efficiency etc.

①　Coreless, anhysteresis, slotless, have low starting torque.

②　No iron loss, have high efficiency

③　Adopt unique coreless precision winding technology design precision coil

④　Adopt the rare earth permanent magnet, which is multipole, mean gap, high power density and high output power.

⑤　Low speed direct driving, no torque fluctuations

⑥　Compact structure, high ratio of power to volume

⑦　No iron loss, low calorific value,small temperature rise

⑧　Simple structure, easy to install

⑨　The brushless structure, free maintenance

5. PERFORMANCE PARAMETE

NO.	PARAMETER	UNITS	DATA
1	Rated power	KW	3
2	Rated speed	RPM	160
3	Rated voltage	V	380VAC
4	Rated Current		4.7
6	Efficiency		>85%
7	Resistance (Line-Line)		-
8	Winding type		Y
9	Insulation Resistance		100Mohm Min(500V DC)
10	Leakage level
