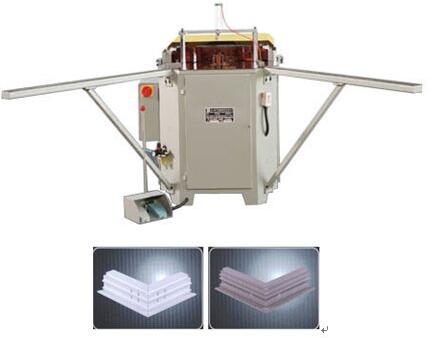

Corner Crimping Machine - (kt-333fa )

We are offering crimping machine, window machine, forming machine etc.put the gusset into the 45°aluminum alloy window profile, move the bump folks, squeeze the two window profile tightly and make a 90°angle firmly. You can adjust the machine to 1-side-four-point crimping according to the characteristic of the gusset. Because of enlarging the size and the crimping force, it is an ideal choice for the corner crimping of thermal-break door and window profiles.
main technique parameter
1. oil pump motor power 3kw
2. oil pump rated pressure 20mpa
3. max. Working travel 70mm
4. max. Working push power 8000kg
5. working air pressure 0.6-0.7mpa
6. impact point adjustable range 8-100mm
7. overall dimension (l×w×h) 1200x1100x1350mm
8. weight 700kg
