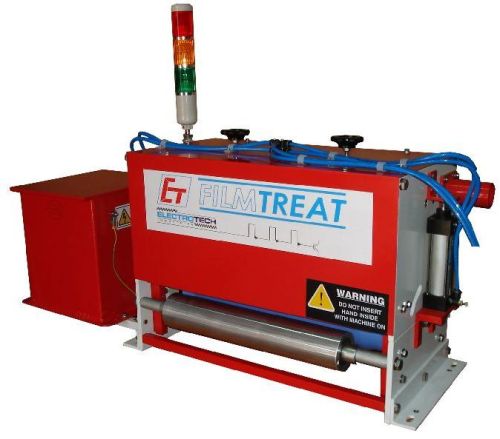

Corona Treater For Narrow Web Lines

The Corona Treatment is essential in label printing. When the label is made from plastic substrate the ink tends to become blemished due to its inability to bond to the plastic. This problem occurs because the surface energy of the plastic is insufficient to form a proper bond.
Often, our customers discover that batches of incoming material have low dyne level (surface adhesion) or that the dyne level of the material on stock has decreased due to heat or humidity. Due to the low dyne level the narrow printing press cannot run at full speed. As a consequence the ElectroTech Industries Corona systems are used for boosting already treated materials to create high adhesion ability.
A common problem in the narrow web industry is the necessity for using top coated materials which have been chemically altered in order to obtain a high surface adhesion for inks. The top coated materials are more expensive to purchase than regular materials. By adding an ElectroTech Industries Corona treater to your narrow web press, you will often eliminate the need for using top-coated materials and thereby decrease production costs significantly
The new generation label press demands compact and efficient corona treatment systems for treatment of variety of substrates at high line speeds. ElectroTech Industries Narrow Web Push-Pull type Corona Treating Station is specially designed keeping the compactness, operator friendliness and efficiency in mind.
Specifications
Treatment Width
200mm-500mm
Line Speed
up to 150 mtr./min
Electrodes
Aluminium / Stainless Steel/ Ceramic Tubes
Treatment Sides
1 or 2
Roll covering
Silicone Sleeve / Bare Roller
Roller Diameter
75-150mm
Application
Label Press
Salient Features
·        Working width up to 500mm.
·        Working speeds up to 250 mpm.
·        Up to 8 ceramic electrodes per side for metalized film
·        Compact design to fit in smallest working spaces
·        Proximity switch for zero speed sensing, pulse block and closed loop feedback for auto-watt density control.
·        Specially designed assembly switch which ensure ultra-fast supply disconnection when actuated.
·        Corrosion resistant paint.
·        Easy pull out cartridge design for easy change of electrodes and its maintenance.
·        Single or double side treatment.
Optional Features
·        Ceramic-coated Treater Rollers for longer operational life.
·        Single side dual pass system.
