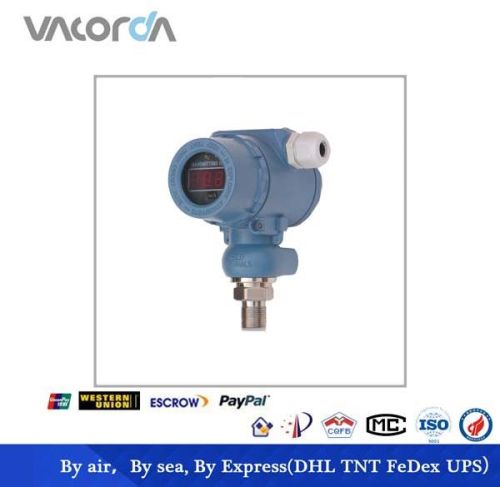

Corrosion Proof Type Pressure Transmitter

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Corrosion Proof Type Pressure Transmitter is commonly used in different industrial machines and it measures the pressure of liquid, fluid and gas. Our company is second to none in manufacture and supply of Corrosion Proof Type Pressure Transmitter in China. These Corrosion Proof Type Pressure Transmitters produce 100% reliable measurements.

View More Details

Send Enquiry

Specifications

Measuring range	0~60MPa
Accuracy class	0.5, 0.25
Output signal	4-20mADC , 0~20mADC
load resistance	0-500Ω (when 24VDC power supply)
Transmitting	> 1000m
Power supply	24VDC
Operating temperature	-50-80 ^oC
Environment temperature	-40 - +50 ^oC
Relative humidity	≤ 85%
Wetted material	PTFE
Connection	Thread: M20x1.5 or G1/2"
Connection	flange
Electrical connection	M20 × 1.5
Explosion-proof	Exia II CT6Ga; ExdIICT6Gb
Protection class	IP65
