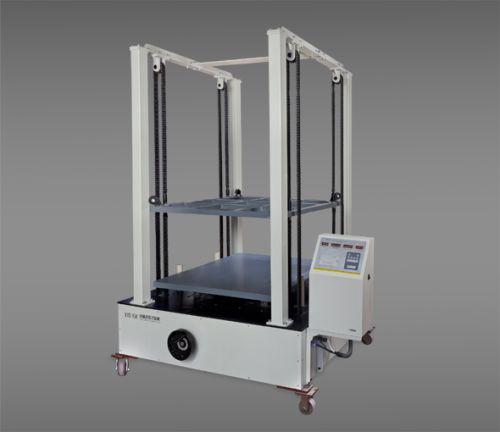

Corrugated Box Compressive Testing Machine

₹ 90,500 / 100000 100000 Set

MOQ1 Set(s)
Availability800kg
Test Speed5mm/min, 10mm/min, 12.7mm/min
Deformation Resolution0.1mm
Testing Space1 m(L) x 1 m(W) x 1.3 m(H)
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 1989

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Availability800kg
Testing Space1 m(L) x 1 m(W) x 1.3 m(H)
Force Resolution1daN
Test Range15kN or 45kN
Deformation Resolution0.1mm
Test Accuracy1% of reading value
Instrument Size1.2 m(L) x 1.5 m(W) x 2.3 m(H)
Test Speed5mm/min, 10mm/min, 12.7mm/min
Brand NameLabthink

We are offering Compression Testing Machine of Corrugated Container.
The ability to resist loads and protect its contents is the most important attribute of a corrugated container. Therefore, Box Compression Test is necessary for manufacturers and investors.
Labthink Compression Testing Machine XYD-15K has the following unique Features:
-- Light-weight design, the weight of Labthink Box Compression Tester is only 800kg
-- 4 testing modes: deformation under defined load, load under defined deformation, maximum load and stack tests
-- Controlled by a micro-computer with menu interface, PVC operation panel and the testing process is automatic
Technical Specifications of labthink Compression Testing Machine:
-- Test Range: 15kN or 45kN
-- Test Accuracy: 1% of reading value
-- Force Resolution: 1daN
-- Deformation Resolution: 0.1mm
-- Test Speed: 5mmmin, 10mmmin, 12.7mmmin
-- Testing Space: 1 m(L) x 1 m(W) x 1.3 m(H)
-- Instrument Size: 1.2 m(L) x 1.5 m(W) x 2.3 m(H)
-- Weight: 800kg
Labthink compression testing machine Conforms to Standards:
ASTM D642, ASTM D4169, TAPPI T804, ISO 12048, JIS Z0212
